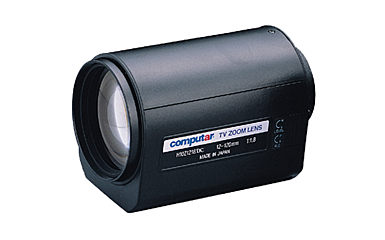

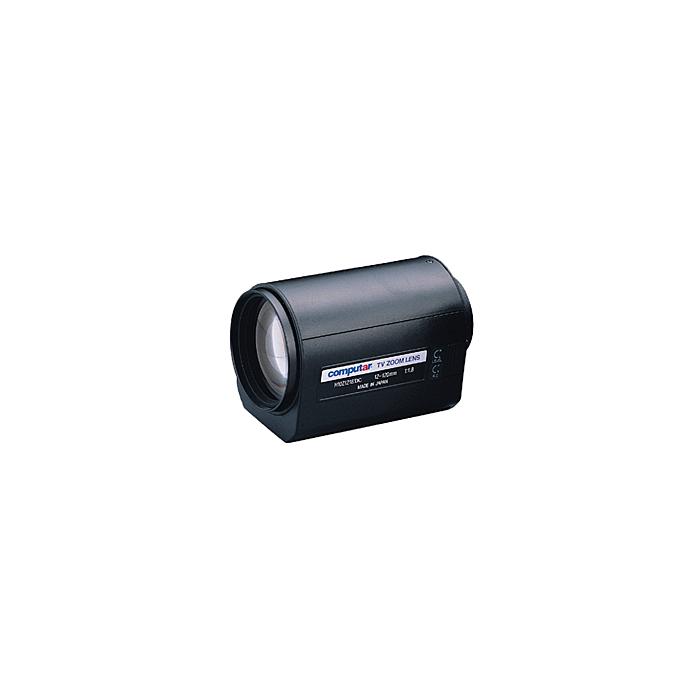

H10Z1218DC: CBC-Computar 1/2" 12-120mm f1.8 10X Motorized Zoom, DC Auto Iris w/ 4-pin mini connector (C Mount)
The H10Z1218DC incorporates View High Resolution Image, a 1/2" 12-120mm f1.8 10X Motorized Zoom capabilities, DC Auto Iris, and a4-pin mini connector.
SKU
H10Z1218DC
Computar Motorized Zoom H10Z1218DC Lenses are built for security applications.
Features:
Applications:
| Model | H10Z1218DC |
| Focal Length | 12mm - 120mm |
| Max. Aperature | 1:1.8 |
| Max Image Format | 6.4mm x 4.8mm(8mm) |
| Operation Range | Iris=F1.8 - F560C Focus=1.5m - Inf. Zoom=2mm - 120mm |
| Control | Motorized Focus, Zoom DC Auto Iris |
| Supply Voltage | DC8V |
| Effective Lens Aperature | Front φ54mm Rear φ9.2mm |
| Back Focal Length | 14.4mm |
| Flange Back Length | 17.526mm |
| Mount | C-Mount |
| Filter Size | M62 P0.75mm |
| Dimensions | W70mm x H81mm x D123.5mm |
| Weight | 630g |
