T10Z5712AMS Image #1

T10Z5712AMS: CBC-Computar 1/3" 5.7-57mm f1.2 10X Motorized Zoom, Video Auto Iris w/spot (CS Mount)

H10Z1218DC  Image #1

H10Z1218DC: CBC-Computar 1/2" 12-120mm f1.8 10X Motorized Zoom, DC Auto Iris w/ 4-pin mini connector (C Mount)

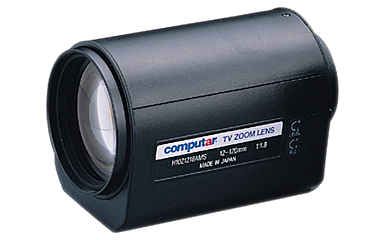

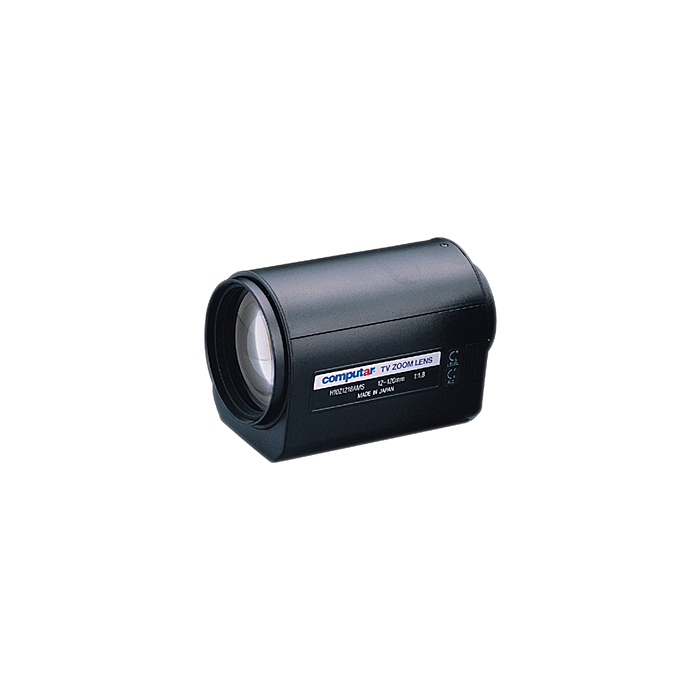

H10Z1218AMS: CBC-Computar 1/2" 12-120mm f1.8 10X Motorized Zoom, Video Auto Iris w/spot (C Mount)

Computar's H10Z1218AMS is a 12-120mm (10x) motorized zoom lens featuring 1/2-inch image sensor format, C-mount design, and video auto iris.
SKU
H10Z1218AMS

The H10Z1218AMS is a high resolution lens built for observance applications.



Features:



  • Format: 1/2"
  • Focal Length: 12-120mm
  • Aperture: F1.8
  • Iris Type: Video Auto-Iris
  • Mount: C-Mount
  •


    Applications:



  • CCTV
  • Security
  • Intelligent Traffic Systems
  • Model H10z1218AMS
    Focal Length 12mm - 120mm
    Max. Aperature 1:1.8
    Max Image Format 6.4mm x 4.8mm(8mm)
    Operation Range Iris=F1.8 - F560C   Focus=1.5m - Inf.  Zoom=12mm - 120mm
    Control Motorized Focus, Zoom    Video Iris
    Supply Voltage DC8.5V - DC16V
    Effective Lens Aperature Front φ54mm     Rear φ9.2mm
    Back Focal Length 14.4mm
    Flange Back Length 17.526mm
    Mount C-Mount
    Filter Size M62 P0.75mm
    Dimensions W70mm x H81mm x D123.5mm
    Weight 650g
