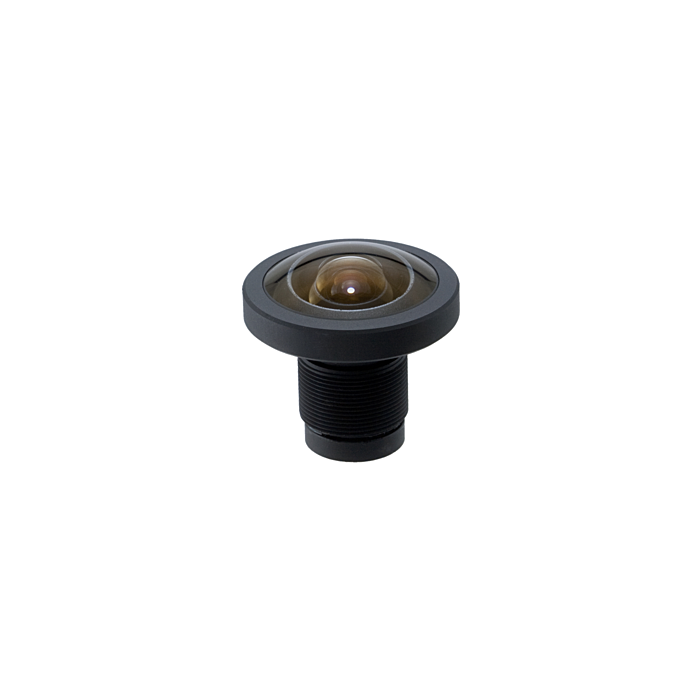

CBC-Computar E1628KRY 1/1.7" 1.65mm 4K Fisheye IR Board Lens (S Mount)

The E1628KRY M12 Mount 1.65mm 4K Fisheye IR Board Lens from Computar is designed for over 8MP cameras with 1/1.7" format sensors.
SKU
E1628KRY

E1628KRY 1/1.7" 1.65MM Fisheye F2.8 M12 (S-Mount), 4K Ultra HD 8+ MP, IR Corrected,True Day/Night



Features:



  • 1/1.7" Format
  • 1.65mm Fixed Lens
  • 4K Fisheye (over 8 MP)
  • True Day/Night
  • Equidistance Projection
  • IR Corrected
  • M12 (S Mount)
  • F2.8
  •


    Applications:



  • Machine Vision
  • Industrial Inspection
  •

    Model E1628KRY
    Focal Length 1.65mm
    Max. Aperture Ratio 1:2.8
    Image Size at 185° φ5.38mm
    Mount M12 P=0.5mm
    Control Iris Manual Focus Manual
    Effective Lens Aperture Front φ 18.4mm   Rear φ 5.7mm
    Back Focal Length 44.58mm
    Dimensions φ23mm x 22.3mm
    Weight 10.8g
