  • Blackmagic - Mini Converter UpDownCross Image

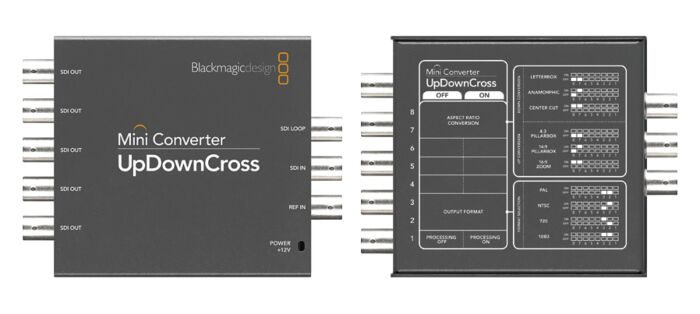

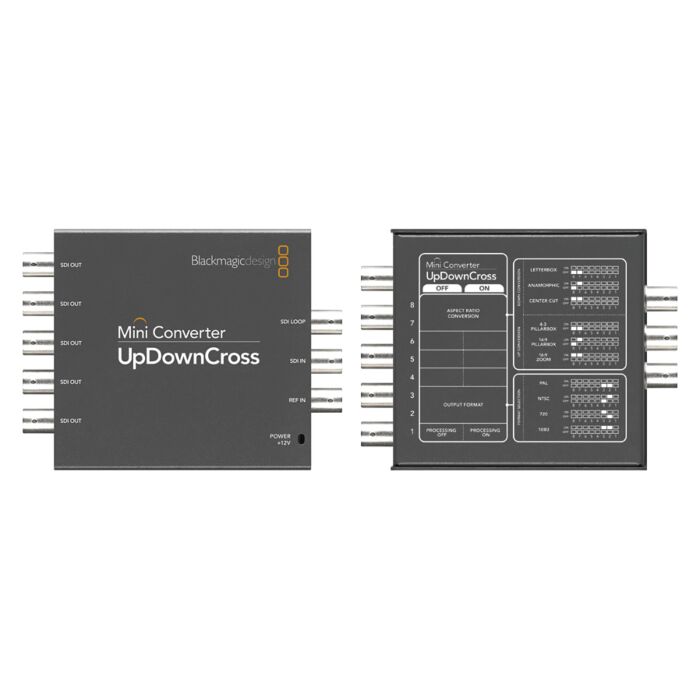

Blackmagic - Mini Converter UpDownCross

Quick Overview

6 x outputs automatically match the SD, HD and 3G-SDI video input unless up, down, cross and/or standards conversion is enabled, Auto detection of HD or standard definition SDI inputs.
Overview

UpDownCross converter includes both up, down and cross conversion as well as a 4 field standards converter! Fantastic for placement on deck SDI inputs, so you always get NTSC or PAL into the deck. Use the cross converter to convert 720p to 1080i or 1080i to 720p so you can edit once and master in SD, 720p and 1080i video

Features:

  • Convert Between SD to HD Video Formats
  • Up / Down / Cross Conversions
  • NTSC / PAL Outputs
  • Converts 720p to 1080i or Vice-Versa
  • Auto SD/HD Switching
  • Advanced 3 GB/S SDI Technology
  • Uses 10 Bit SDI Video Quality
  • Low SDI Jitter
  • International Power Supply

  • Applications:

  • Video Editing
  • Professional AV
  • Post Production
  • Specifications
    SDI Video Output 6 x outputs automatically match the SD, HD and 3G-SDI video input unless up, down, cross and/or standards conversion is enabled
    SDI Video Input Switchable between SD, HD and 3G-SDI
    Updates and Configuration Via USB 2.0 high speed. (480 Mb/s)
    Reference Input Blackburst and TriSync for SD & HD
    Multi Rate Support Auto detection of HD or standard definition SDI inputs
    Reclocking Yes
    SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601
    SDI Video Rates  SDI video connections are switchable between standard definition and high definition
    SDI Video Sampling 4:2:2
    SDI Audio Sampling  Television standard sample rate of 48 kHz and 24 bit
    SDI Color Precision 4:2:2
    SDI Color Space YUV
    SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 3G-SDI
    SDI Format Support 525/29.97 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94 and 1080p60
    Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point
    Power Consumption 7.00 Watts
    Operational Voltage Range 12 - 30 V
    Operating Temperature 0° to 40° C (32° to 104° F)
    Storage Temperature -20° to 45° C (-4° to 113° F)
    Relative Humidity 0% to 90% non-condensing
