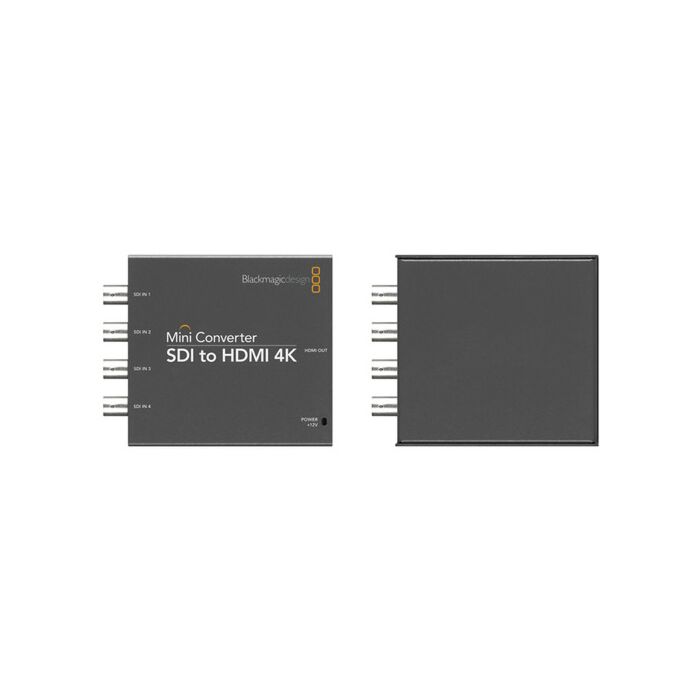

Blackmagic - Mini Converter SDI to HDMI 4K
SDI Video Input 1 x SD, HD or 6G-SDI, SDI Video Output (4K HDMI output only), HDMI - HDMI type A out, Multi Rate Support Auto detection of SD, HD or 6G-SDI.
SKU
Blackmagic Mini Converter SDI to HDMI 4K
Now you can connect Single Link 6G-SDI, Dual Link 3G-SDI or Quad Link HD-SDI to the newest HDMI 4K projectors and televisions that support Ultra HD over a single HDMI link. Mini Converter SDI to HDMI 4K lets you build Ultra HD monitoring with ease, while still working with all your regular SD and HD equipment.
Features:
Applications:
| SDI Video Input | 1 x SD, HD or 6G-SDI |
| SDI Video Output | (4K HDMI output only) |
| HDMI | HDMI Type A out |
| SDI Redundant Input | Automatically switches over if main SDI input is lost |
| Multi Rate Support | Auto detection of SD, HD or 6G-SDI |
| Updates and Configuration | USB |
| Reclocking | Yes |
| SD Format Support | 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL |
| HD Format Support | 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| 2K Format Support | 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25 |
| 4K Format Support | 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M and SMPTE 425M |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition and 6G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD or 6G-SDI. |
| HDMI Format Support | 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24 |
| HDMI Color Space | YUV and RGB |
| HDMI Color Precision | 4:2:2 and 4:4:4 |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point |
| Power Consumption | 5.2 Watts |
| Operational Voltage Range | 12 - 30 VDC |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
