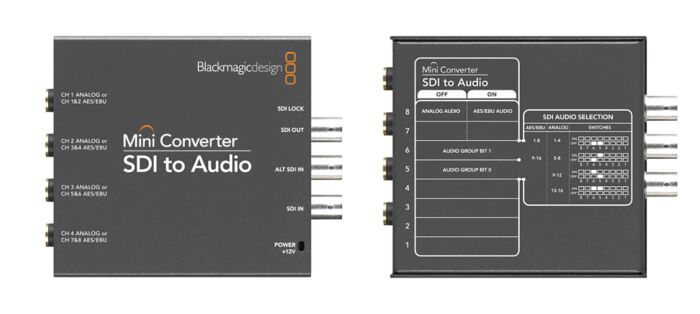

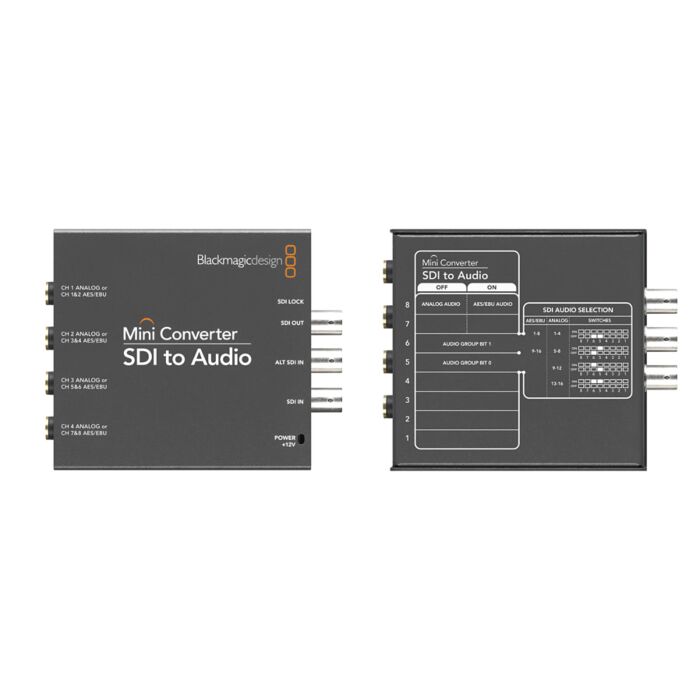

  • Blackmagic - Mini Converter SDI to Audio 4K Image

Blackmagic - Mini Converter SDI to Audio 4K

Quick Overview

Single Link 6G-SDI Input, De-Embeds Audio from SDI Signal, 4x 1/4" Audio Output Jacks, Automatic Input Signal Detection
Overview

Mini Converter SDI to Audio 4K includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more.

Features:

  • De-Embeds Audio from SDI Signal
  • Single Link 6G-SDI Input
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • Redundant SDI Input
  • 4x 1/4" Audio Output Jacks
  • 4 Analog or 8 AES/EBU Audio Channels
  • 24-Bit, 48 kHz Audio
  • Control via DIP Switches or Software
  • 12V Universal Power Supply Included

  • Applications:

  • Broadcasting
  • Professional AV
  • Music/Film Productions
  • Audio Mixers
  • Specifications
    SDI Video Input Switchable between SD, HD, 3G and 6G-SDI
    SDI Video Output Automatically matches the SD, HD, 3G and 6G-SDI video input
    SDI Redundant Input Automatically switches over if main SDI input is lost
    Analog Audio 4 channels of professional balanced analog audio with standard 1/4 inch jack connections
    AES/EBU Digital Audio 8 channels of professional balanced digital with standard 1/4 inch jack connections
    Multi Rate Suport Auto detection of 4K, UHD, 2K, HD or SD SDI inputs
    Updates and Configuration USB
    Reclocking Yes
    SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601, SMPTE ST-2036
    SDI Video Rates SDI video connections are switchable between standard definition and high definition
    SDI Video Sampling 4:2:2, 4:4:4
    SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit
    SDI Color Precision 4:2:2, 4:4:4
    SDI Color Space YUV, RGB
    SDI Auto Switching Automatically selects between SD, HD, 3G and 6G-SDI
    SDI Format Support 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p, 29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30
    Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point
    Power Consumption 5.52 Watts
    Operational Voltage Range 12V - 31VDC
    Operating Temperature 0° to 40° C (32° to 104° F)
    Storage Temperature -20° to 60° C (-4° to 113° F)
    Relative Humidity 0% to 90% non-condensing
