Blackmagic - Mini Converter SDI Multiplex 4K
4:2:2 and 4:4:4 RGB and YUV Support, Convert Between 4K and UHD SDI Signals, 48kHz 24-Bit Audio, Automatic SD, HD, and 6G Switching.
SKU

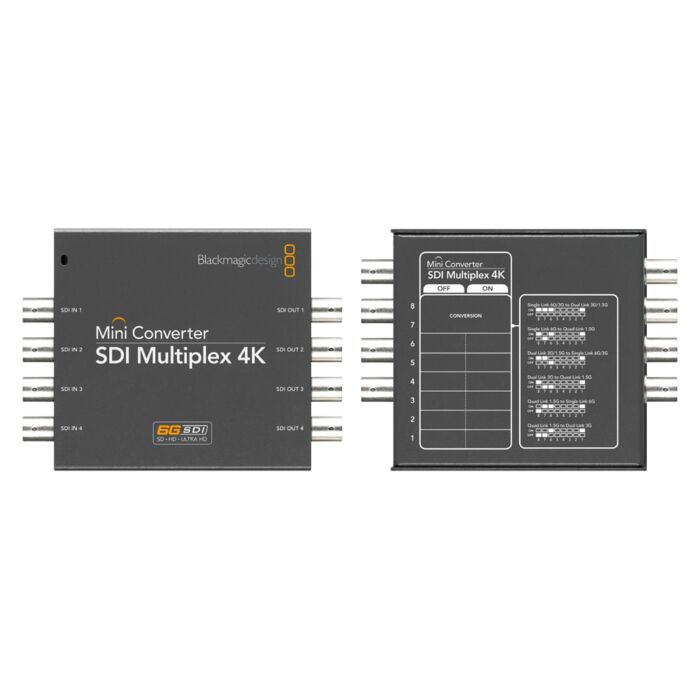

Mini Converter SDI Multiplex 4K
The converter you need when converting between Quad Link HD-SDI, Dual Link 3G-SDI and Single Link 6G-SDI Ultra HD equipment. Mini Converter SDI Multiplex includes 4 x 3G-SDI inputs and 4 x 3G-SDI outputs so it can convert in both directions. Also converts between Dual Link HD-SDI 4:4:4 and Single Link 3G-SDI.
Features:
Applications:
| SDI Video Input | 4 x 1.5Gb/s SDI or 2 x 3G-SDI or 1 x 6G-SDI |
| SDI Video Output | 4 x 6G-SDI |
| Multiple Rate Support | Auto detection of SD, HD or 6G-SDI on Input 1 |
| Updates and Configuration | Via USB 2.0 high speed. (480 Mb/s) |
| Reclocking | Yes |
| SD Format Support | 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| 2K Format Support | 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25 |
| 4K Format Support | 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M and SMPTE 425M |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition and 6G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically selects between SD SDI, HD-SDI and 6G-SDI |
| Software Control | Mac OS X™ and Windows™ software upgrade via USB |
| Internal Software Upgrade | Via included updater application |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 5.2 Watts |
| Operational Voltage Range | 12 - 30 V DC |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
