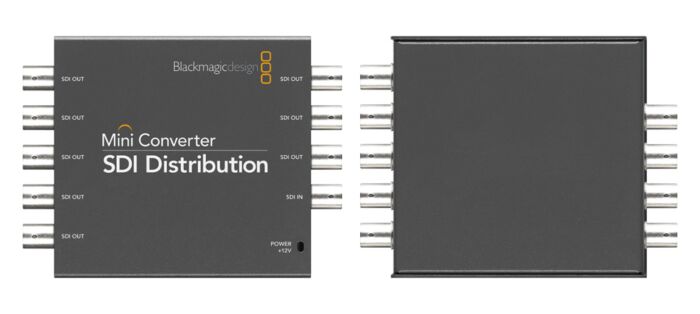

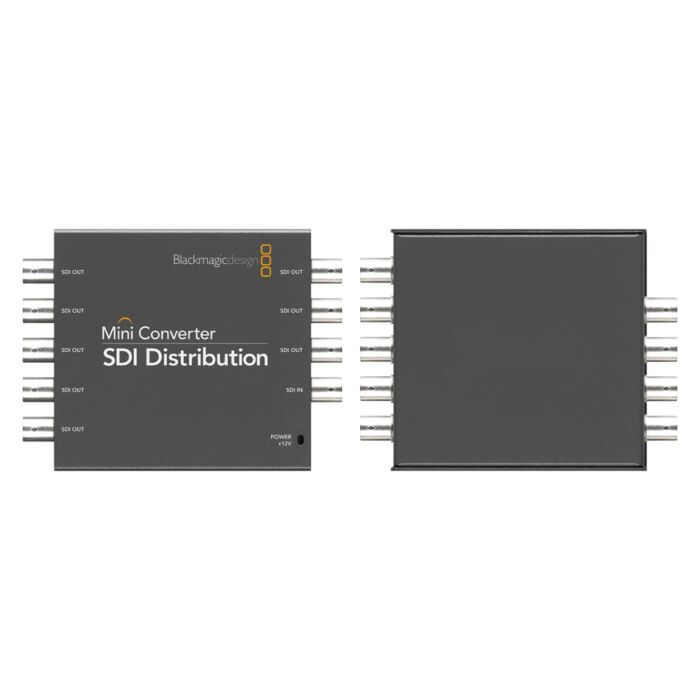

  • Blackmagic - Mini Converter SDI Distribution Image

Blackmagic - Mini Converter SDI Distribution

Quick Overview

Switchable between SD, HD and 6G-SDI, Auto detection of 6G-SDI, HD or standard definition inputs, Television standard sample rate of 48 kHz and 24 bit.
Overview

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re-clocked SDI outputs with automatic switching between all SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats, plus all ASI, ancillary and embedded audio formats.

Features:

  • SD/HD/6G-SDI to Optical Fiber Conversion
  • Optical Fiber to SD/HD/6G-SDI Conversion
  • Supports 4K and Ultra HD Signals
  • Automatic SD, HD, and 6G Switching
  • Output Resolution Matches Input
  • 4:4:4 and 4:2:2 RGB and YUV Support
  • 48kHz 24-Bit Audio
  • USB 2.0 Port for Updates
  • 12V Universal Power Supply Included

  • Applications:

  • Broadcast
  • Post Production
  • Professional AV
  • Specifications
    SDI Video Input Switchable between SD, HD and 6G-SDI
    SDI Video Output 8 outputs automatically match the SDI video input
    Re-clocking Yes
    SD Format Support 525/29.97 NTSC, 625/25 PAL
    HD Format Support 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
    2K Format Support 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
    4K Format Support 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
    SDi Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
    SDI Video Rates SDI video connections are switchable between 6G-SDI, HD and SD-SDI
    SDI Video Sampling 4:2:2 and 4:4:4
    SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit
    SDI Color Precision 4:2:2 and 4:4:4
    SDI Color Space YUV and RGB
    SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 3G- SDI
    ASI Support Yes
    Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point
    Power Consumption 4.80 Watts
    Operational Voltage Range 12V - 30V
    Operating Temperature 0° to 40° C (32° to 104° F)
    Storage Temperature -20° to 45° C (-4° to 113° F)
    Relative Humidity 0% to 90% non-condensing
