Blackmagic - Mini Converter Optical Fiber 4K

16 channel embedded, 1 x 10 bit SD/HD/6G-SDI switchable, Auto detection of SD, HD or 6G-SDI.
SKU

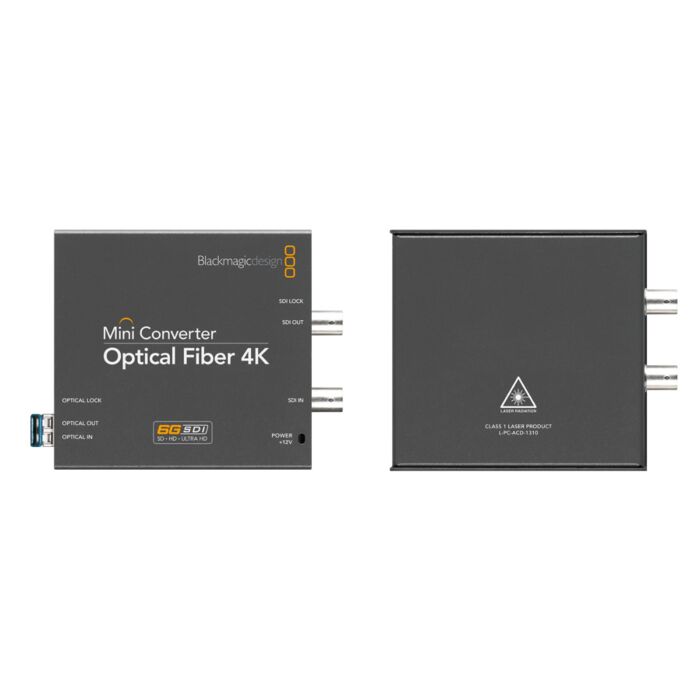

Mini Converter Optical Fiber 4K

Now you can convert 6G-SDI to Optical Fiber, and Optical Fiber to 6G-SDI simultaneously. Mini Converter Optical Fiber automatically switches between any SD, HD and UltraHD video standards and each direction can be completely independent.

Features:

  • SD/HD/6G-SDI to Optical Fiber Conversion
  • Optical Fiber to SD/HD/6G-SDI Conversion
  • Supports 4K and Ultra HD Signals
  • Automatic SD, HD, and 6G Switching
  • Output Resolution Matches Input
  • 4:4:4 and 4:2:2 RGB and YUV Support
  • 48kHz 24-Bit Audio
  • USB 2.0 Port for Updates
  • 12V Universal Power Supply Included

  • Applications:

  • Broadcast
  • Post Production
  • Professional AV
  • SDI Video Input Switchable between SD, HD and 6G-SDI
    SDI Video Output Automatically matches the SD, HD and 6G-SDI video input
    Optical Fiber Video Input 1 x 10 bit SD/HD/6G- SDI switchable
    Optical Fiber Video Output 1 x 10 bit SD/HD/6G-SDI switchable
    Optical Fiber Audio Input 16 channel embedded
    Optical Fiber Audio Output 16 channel embedded
    Multi Rate Support Auto detection of SD, HD or 6G-SDI
    Reclocking Yes
    SD Format Support 525/29.97 NTSC, 625/25 PAL
    HD Format Support 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
    2K Format Support 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
    4K Format Support 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
    SDI Compliance   SMPTE 259M, SMPTE 292M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI
    SDI Video Rates  SDI video connections are switchable between standard definition, high definition and 6G-SDI
    SDI Video Sampling  4:2:2 and 4:4:4
    SDI Audio Sampling  Television standard sample rate of 48 kHz and 24 bit
    SDI Color Precision  4:2:2 and 4:4:4
    SDI Color Space YUV and RGB
    SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 6G-SDI
    ASI Support Yes
    Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point
    Power Consumption 3.84 Watts
    Operational Voltage Range 12V
    Operating Temperature 0° to 40° C (32° to 104° F)
    Storage Temperature -20° to 45° C (-4° to 113° F)
    Relative Humidity 0% to 90% non-condensing
