  • Blackmagic - Mini Converter HDMI to SDI 4K Image

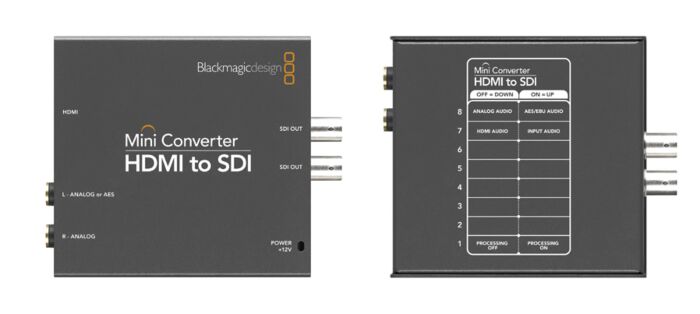

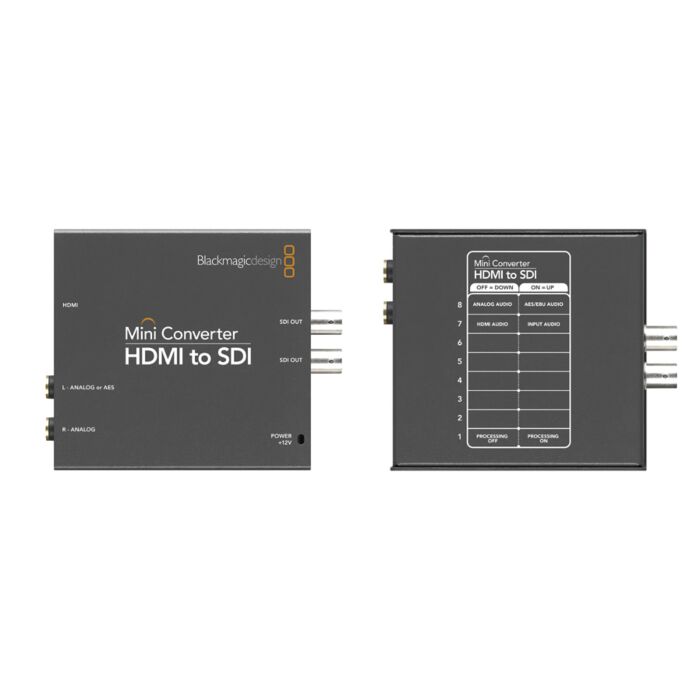

Blackmagic - Mini Converter HDMI to SDI 4K

Quick Overview

Automatically matches the SD, HD and 6G-SDI HDMI video input, 2 channels of professional balanced digital with standard 1/4 inch jack connections, Auto detection of 6G-SDI, HD or standard definition SDI inputs.

Overview

Mini Converter HDMI to SDI 4K includes everything you need to convert from HDMI devices to SD, HD, 3G and 6G-SDI video in SD, HD and Ultra HD video formats. You can easily embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Get the perfect solution to convert HDMI consumer cameras to SDI, or add SDI outputs to computers with HDMI connections.

Features:

  • 4K HDMI Input
  • 2x 6G-SDI Outputs
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • 24-bit, 48 kHz Audio
  • Analog & AES-EBU Digital Audio Inputs
  • Embeds Audio into SDI Output
  • Control via DIP Switches or Software
  • USB 2.0 Port for Firmware Updates
  • 12V Universal Power Supply Included

  • Applications:

  • Broadcasting
  • Post Production
  • Professional AV
  • Specifications
    SDI Video Output Automatically matches the SD, HD and 6G-SDI HDMI video input
    Analog Audio 2 channels of professional balanced analog audio with standard 1/4 inch jack connections
    AES/EBU Digital Audio 2 channels of professional balanced digital with standard 1/4 inch jack connections
    HDMI HDMI Type A in
    Multi Rate Support Auto detection of 6G-SDI, HD or standard definition SDI inputs
    Updates and Configuration USB
    Reclocking Yes
    SD Format Support 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL
    HD Format Support 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    4K Format Support 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
    SDI Compliance  SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601
    SDI Video Rates SDI video connections are switchable between standard definition and high definition
    SDI Video Sampling 4:2:2
    SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit
    SDI Color Space YUV
    SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 6G-SDI
    HDMI Color Space YUV and RGB
    HDMI Color Precision 4:2:2 and 4:4:4
    HDMI Format Support 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
    Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
    Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point
    Power Consumption 4.44 Watts
    Operational Voltage Range 12 - 31 VDC
    Operating Temperature 0° to 40° C (32° to 104° F)
    Storage Temperature -20° to 45° C (-4° to 113° F)
    Relative Humidity 0% to 90% non-condensing
