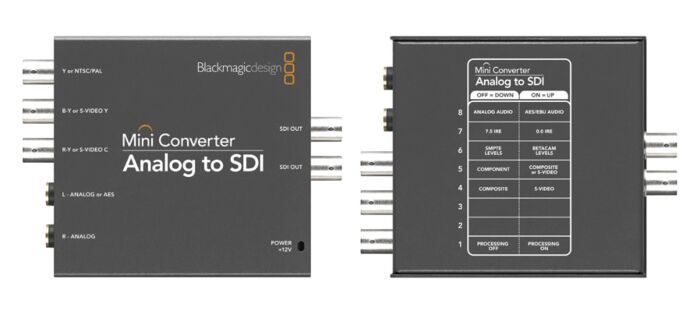

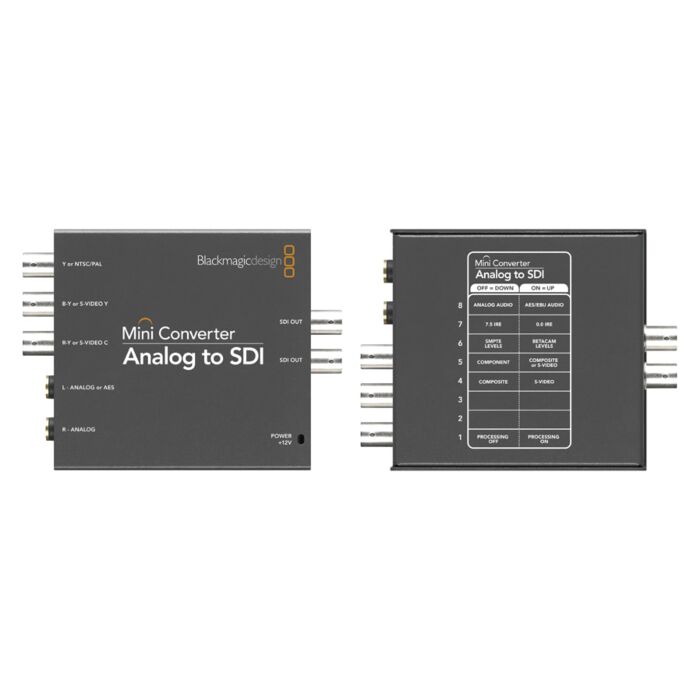

  • Blackmagic - Mini Converter Analog to SDI Image

Blackmagic - Mini Converter Analog to SDI

Quick Overview

Automatically matches the SD and HD video input, 2 channels of professional balanced analog audio with standard 1/4 inch jack connections, Auto detection of HD or standard definition inputs.
Overview

Perfect for converting from analog HD/SD component, NTSC, PAL or S-Video to SDI out with balanced jack AES/EBU and analog audio embedding. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.

Features:

  • Analog to SDI Conversion
  • Embedded Audio

  • Applications:

  • Professional AV
  • Post Production
  • Video Tutorials/Entertainment
  • Home Videos
  • Specifications
    SDI Video Output                         Automatically matches the SD and HD video input
    Analog Audio 2 channels of professional balanced analog audio with standard 1/4 inch jack connections
    Analog Video Component SD/HD, NTSC, PAL and S-Video
    AES/EBU Digital Audio 2 channels of professional balanced digital with standard 1/4 inch jack connections
    Multi Rate Support Auto detection of HD or standard definition inputs
    Updates and Configuration Via USB 2.0 high speed. (480 Mb/s)
    Reclocking Yes
    SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601
    SDI Video Rates SDI video connections are switchable between standard definition and high definition
    SDI Video Sampling 4:2:2
    SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit
    SDI Color Precision 4:2:2
    SDI Color Space YUV
    SDI Auto Switching Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI
    SDI Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
    Analog Format Support 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
    Analog Color Space YUV
    Analog Color Precision 4:2:2
    Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point
    Power Consumption 6.50 Watts
    Operational Voltage Range 12 - 31 VDC
    Operating Temperature                      0° to 40° C (32° to 104° F)
    Storage Temperature                         -20° to 45° C (-4° to 113° F)
    Relative Humidity                               0 to 90% non-condensing
