  • Blackmagic Decklink Studio 4K Image

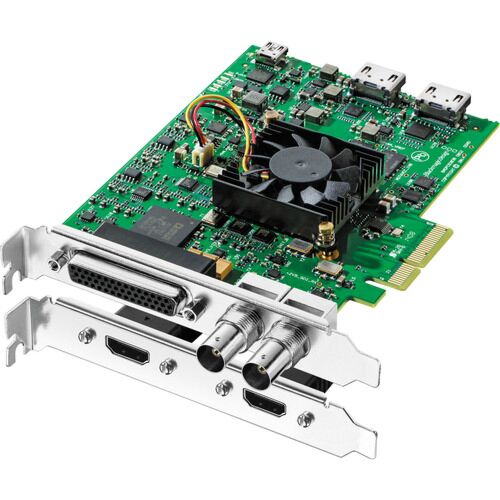

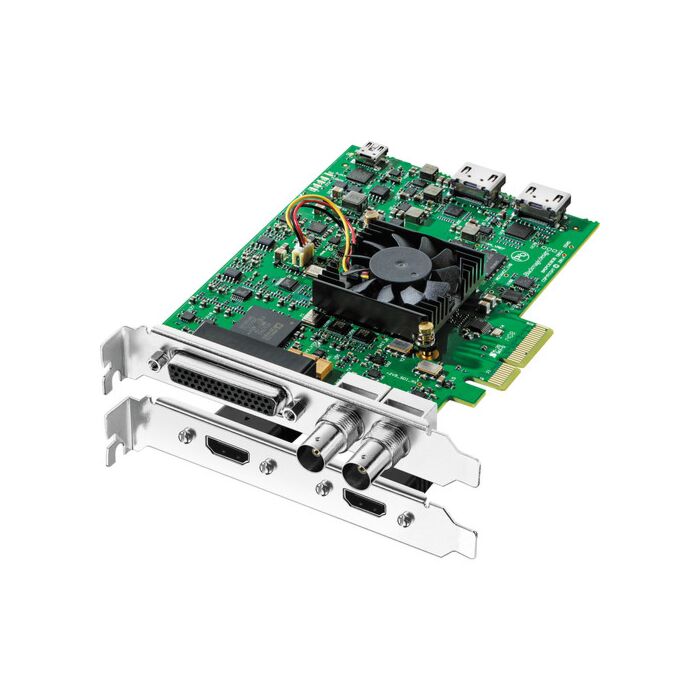

Blackmagic Decklink Studio 4K

Quick Overview

1080p 4:4:4 by Single-Link 3G-SDI, UHD / DCI 4K 4:2:2 via 6G-SDI or HDMI, 4K HDMI Input/Output, 6G-SDI Input/Output, Supports SD, HD, 2K, and 4K Formats.


Overview

If you work with a wide range of analog video and audio gear, and need to move seamlessly between SD, HD, 2K and Ultra HD, then DeckLink Studio 4K is perfect! DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, black burst and tri-sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. Perform editing, paint and broadcast design and more with the ultimate future proof design!

Features:

  • PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
  • Multi-rate SDI and HDMI connections accept SD, HD, 2K, and 4K resolutions
  • 10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI
  • 10-bit, 4:4:4 1080p by single-link 6G-SDI
  • 8-bit RBG / 10-bit YUV HDMI output
  • HD to SD down-conversion
  • SD to HD up-conversion
  • Hardware cross conversion between 720p and 1080p on playback
  • RS-422 deck control
  • Internal SD keying
  • Reference input
  • Blackburst and tri-sync
  • Supports 16 channels of embedded SDI and 8 channels of embedded HDMI audio in HD, 2K, and 4K resolutions (8 channels of embedded SDI audio in SD)

  • Applications:

  • Editing
  • Video/Photography Effects
  • Design Software
  • Video Capture/Playback
  • Specifications
    SDI Video Input 1 x 10-bit 6G-SDI via BNC Connector
    Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
    SDI Video Output                         1 x 10-bit 6G-SDI via BNC Connector
    Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
    Analog Video Input Via included breakout cable:
    1 x Component YUV on three BNC connectors (HD and SD)
    1 x Composite
    1 x S-Video
    Analog Video Output 1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD.
    HDMI Video Input 1 x HDMI Type A
    HDMI Video Output 1 x HDMI Type A
    Audio Input 4 Channels of professional balanced analog audio via 1/4" jack connectors.
    Analog Audio Output 4 Channels of professional balanced analog audio via 1/4" jack connectors. Channels 3 & 4 can switch to AES/EBU outputs.
    AES/EBU Audio Input 2 Channels unbalanced with sample rate converter.
    AES/EBU Audio Output 2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature.
    SDI Audio Input  16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
    SDI Audio Output 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
    HDMI Audio Input 8 Channels embedded in SD, HD, 4K.
    HDMI Audio Output 8 Channels embedded in SD, HD, 4K
    Sync Input Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD, 2K or 4K format.
    Device Control Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
    Computer Interface PCI Express 4 lane generation 1, compatible with 4,8 and 16 lane PCIe Slots.
    Supported Codecs Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.
    Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
    Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software.
    Physical Installation PCI Express 4 lane generation 1, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows and Linux. Please check the Support pages to see the full system requirements.
    Software Applications DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Photoshop CC, Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.
    SD Format Support 625/25 PAL, 525/29.97 NTSC.
    HD Format Support 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60.
    2K Format Support 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25
    4K Format Support 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25.
    SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M ITU-R BT.656 and ITU-R BT.601.
    SDI Metadata Support VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.
    Audio Sampling            Television standard sample rate of 48 kHz at 24 bit.
    Video Sampling           4:2:2 and 4:4:4 (4K is 4:2:2)
    Color Precision 10-bit
    Color Space                      REC 601, REC 709
    HDMI Configuration HDMI automatically configures to connected display
    HDMI Resolution           Pixel for pixel up to 4K resolutions
    HDMI Color Precision               10-bit RGB in HD
    10-bit YUV in 4K
    Multiple Rate Support                HDMI and SDI video connections are switchable between SD/HD/2K and UHD. Component analog video connections are switchable between SD and HD
    Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
    Colorspace Conversion Hardware based real time
    HD Down Conversion Built in, high quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles
    HD Up Conversion Software based up conversion from SD to 720HD or 1080HD on capture. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom
    Cross Conversion           Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.
    Real Time Effects Apple Final Cut Pro™ internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer™ internal effects. DaVinci Resolve
    Operating Temperature          5° to 40° C (32° to 104° F)
    Storage Temperature               -20° to 45° C (-4° to 113° F)
    Relative Humidity 0% to 90% non-condensing
