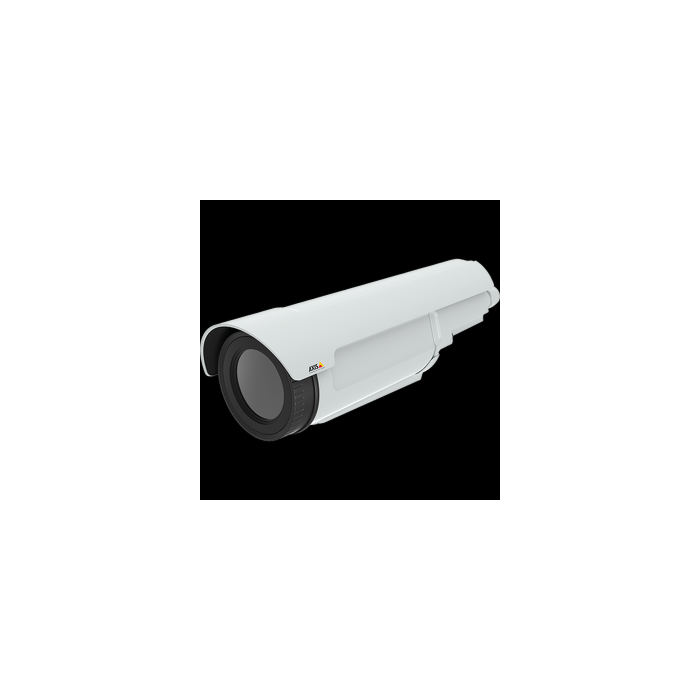

Axis Q1941-E PT (Q1941EPT) (768x576) Mount Thermal Network Camera
Uncooled Micro bolometer 384x288, pixel size: 17 µm, Spectral range: 8-14 μm.
SKU
Axis Q1941-E PT
AXIS Q1941-E PT Mount is easy to install and can easily be integrated with existing security systems. The following installation video shows how to mount the camera on a positioning unit. AXIS Q1941-E PT Mount’s powerful processor lets you add the strength of the market’s widest selection of video analytics solutions to your surveillance solution. For example, video analytics applications from Axis and our partners support swift and appropriate response to detected events by analyzing them, automatically dismissing non-threatening ones and instantly notifying security staff of potentially critical situations. Your staff can then view sharp, detailed footage to determine the precise nature of the threat – and act accordingly. Thanks to a superb thermal image contrast, AXIS Q1941-E reliably detects and gives a fast verification of the situation, e.g. in perimeter surveillance.
Features:
Applications:
| Image Sensor | Uncooled Micro bolometer 384x288, pixel size: 17 µm Spectral range: 8-14 μm |
| Lens |
7 mm: Horizontal field of view: 55° view, F1.2 |
| Sensitivity |
NETD < 70 mK |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG |
| Resolutions | Sensor is 384x288. Image can be scaled up to 768x576 |
| Frame Rate | Up to 8.3 fps and 30 fps |
| Video Streaming | At least three H.264 and Motion JPEG streams, simultaneous and individually configured in max. resolution in full frame rate Axis' Zipstream Technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 |
| Image Settings | Compression, Brightness, Sharpness, Contrast, Exposure zone, Rotation: 0°, 90°, 180°, 270° including Corridor Format, Text and image overlay, Privacy mask, Mirroring of images, Electronic Image Stabilization, Multiple palettes |
| Audio Streaming | Two-way, full duplex |
| Audio Compression | AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate |
| Audio Input/Output | External microphone input or line input, Line output |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management |
| Supported Protocols | IPv4/v6, HTTP, HTTPSb , SSL/TLSb , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF® Profile S and ONVIF® Profile G |
| Analytics | Video motion detection, shock detection Support for AXIS Camera Application Platform enabling installation of AXIS Perimeter Defender and third-party applications |
| Event Triggers | Analytics, Temperature, External input, Time scheduled, Edge storage events |
| Event Actions | File upload: FTP, SFTP, HTTP, HTTPS network share and email Notification: email, HTTP, HTTPS and TCP and SNMP trap External output activation Video recording to edge storage Pre- and post-alarm video buffering Play audio clip, Overlay text |
| Data Streaming | Event Data |
| Built-in Installation Aids | Pixel Counter |
| Casing | IP66-, IP67- and NEMA 4X-rated Metal casing (aluminum) with integrated dehumidifying membrane and a germanium window Color: White NCS S 1002-B |
| Sustainability | PVC Free |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 Typical 4.8 W, max 11.8 W 8–28 V DC: typical 6.6 W, max 13 W 20–24 V AC (50/60 Hz): typical 11 VA, max 19 VA Power supply not included |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE I/O connector for DC or AC input, two configurable inputs/outputs and mic in/line in, line out. (AXIS Multicable A I/O Audio not included) AC/DC input |
| Storage | Support for microSD/microSDHC/microSDXC card Support for recording to dedicated network-attached storage (NAS) For SD card and NAS recommendations |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F) Humidity 10-100% RH (condensing) |
| Storage Conditions | -40 °C to 70 °C (-40 °F to 158 °F) |
| Approvals | EMC EN 55022 Class A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR22 Class A KCC KN22 Class A, KN24 Safety IEC/EN/UL 60950-1, IEC/EN/UL 60950-22 Environment EN 50581, IEC 60529 IP66/IP67, NEMA 250 Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6 Class 4M4, IEC 60068-2-27, IEC 60068-2-52, IEC 60721-3-4 Class 4K3 |
| Dimensions | 344 x 146 mm (13 9/16 x 5 3/4 in) |
| Weight | 7/13/19/35 mm: 2000 g (4.4 lb) 60 mm: 2200 g (4.9 lb) |
| Included Accessories | Resistorx® L-key Wall and ceiling mount bracket, AXIS Video Motion Detection 3, Terminal block connector Installation Guide, Windows decoder 1-user license |
| Optional Accessories | AXIS T98A17-VE Surveillance Cabinet, AXIS T94G01P, AXIS T91A47 Pole Mount, AXIS Multicable A I/O Audio, Axis PoE Midspans, AXIS T8129 PoE Extender, AXIS T8640 PoE+ over Coax Adapter Kit, AXIS T8604 Media Converter Switch AXIS T8415 Wireless Installation Tool |
| Video Management Software | AXIS Camera Companion, AXIS Camera Station, Video management software from Axis’ Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | Axis 3–year warranty and AXIS Extended Warranty |
| Export Control | This product is subject to export control regulations. You should always consult and comply with the regulations of the appropriate local export control authorities. |
