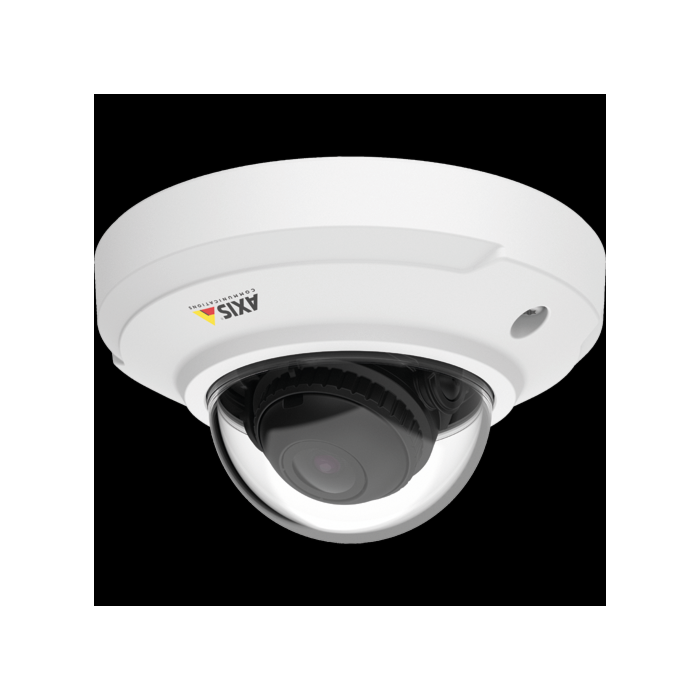

Axis M3045–WV (M3045WV) (1920x1080) Network Camera
Axis M3045-WV is a fuller featured affordable fixed mini dome surveillance camera. It features HDTV 1080p video quality and an HDMI output for live streaming to a public monitor. Offering excellent video quality at an affordable price with wireless connection, it’s perfect for stores, hotels, schools, banks and offices. Axis M3045-WV has a wireless network interface that supports a/b/g/n standards. It provides high-performance, wide-range transmission and you can place it exactly where you need it for a flexible installation. As an alternative Axis M3045-WV can also be connected over Ethernet.
Axis’ Zipstream technology reduces storage and bandwidth by up to 50%, while capturing important details in full image quality. Video streams can be encoded in H.264 and Motion JPEG. And for monitoring long, narrow areas, Axis’ Corridor Format provides a portrait-shaped video stream. It maximizes image quality, while eliminating bandwidth and storage waste. Thanks to digital pan/zoom/tilt (PTZ) capabilities and multi-view streaming, Axis M3045-WV lets you view separate video streams of zoomed-in sections of an image at the same time as you view the full overview image. This can be done with a single camera which keeps installation and maintenance time and costs low. Plus it is one more way that Axis M3045-WV minimizes bandwidth and storage needs.
Features:
Applications:
| Image Sensor | 1/3" progressive scan RGB CMOS |
| Lens |
M12 mount, Fixed iris, Fixed focus |
| Light Sensitivity |
0.25 lux at 50 IRE F2.0 |
| Shutter Time |
1/32500 s to 1/5 s |
| Camera Angle Adjustment |
Pan ±177°, Tilt ±69°, Rotation ±176° |
| Video Compression |
H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profiles, Motion JPEG |
| Resolutions |
1920x1080 (1080p) to 320x240 |
| Frame Rate | Up to 25/30 fps with power line frequency 50/60 Hz |
| Video Streaming |
Multiple, individually configurable streams in H.264 and Motion JPEG, Controllable frame rate and bandwidth, Axis' Zipstream technology in H.264, VBR/MBR H.264 |
| Multi-view Streaming |
Up to 2 individually cropped out view areas in full frame rate |
| Pan/Tilt/Zoom | Digital PTZ |
| HDMI Output |
HDMI 1080p@25/30 fps (50/60 Hz) |
| Image Settings |
Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, WDR, Text and image overlay, Mirroring of images, Privacy mask |
| Wireless Interface |
Internal antenna |
| Security |
Password protection, IP address ltering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certi cate Management |
| Supported Protocols |
IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform |
| Analytics |
AXIS Video Motion Detection 3, Active tampering alarm Support for AXIS Camera Application Platform enabling installation of AXIS Cross Line Detection |
| Event Triggers | Analytics, Edge storage events |
| Event Actions |
File upload: FTP, SFTP, HTTP, HTTPS network share and email |
| Data Streaming | Event Data |
| Built-in Installation Aids | Pixel counter |
| Casing |
Color: White NCS S 1002-B (For repainting of cover, remove the transparent dome. Contact your Axis partner for repainting instructions), Encapsulated electronics, Captive screws (Torx 10), IP42 water- and dust-resistant (to comply with IP42, follow Installation Guide), IK08 impact-resistant, polycarbonate/ABS casing |
| Sustainability | PVC free |
| Memory | 512 MB RAM, 256 MB Flash |
| Power |
4.8–5.2 V DC |
| Connectors | RJ45 10BASE-T/100BASE-TX Micro USB for Dc power HDMI Type D |
| Storage | Support for microSD/microSDHC/microSDXC card Support for recording to dedicated network-attached storage (NAS) |
| Operating Conditions |
0 °C to 45 °C (32 °F to 113 °F) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals |
EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A and B, ICES-003 Class B, , IEC/EN/UL 60950-1, EN 300328, EN 301489-1, EN 301489-17, EN 301893, FCC Part 15 Subpart C, FCC Part 15 Subpart E, RSS-247 IEC/EN 60529 IP42, IEC/EN 62262 Class IK08 |
| Dimensions |
Height: 56 mm (2.2 in) ø 101 mm (4.0 in) |
| Weight | 170 g (0.38 lb)ye |
| Included Accessories |
Power supply, Installation Guide, Windows decoder 1-user license, Torx L-key |
| Optional Accessories |
AXIS T94B02D Pendant kit |
| Video Management Software |
AXIS Camera Companion, AXIS Camera Station, Video management software |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese |
| Warranty | Axis 3-year warranty and AXIS Extended Warranty |
