Axis M1045-LW Fixed Network Cameras Image # 1

Axis M1045-LW (M1045LW) M10 Series (1920x1080) Fixed Network Camera

Axis M1065-LW | Fixed Network Cameras Image # 1

Axis M1065-LW (M1065LW) M10 Series (1920x1080) Fixed Network Camera

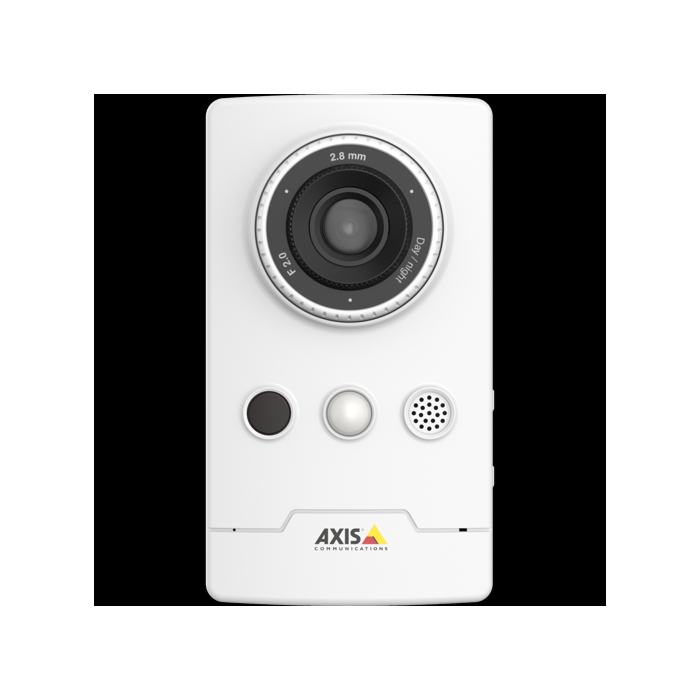

Axis M1065-L (M1065L) M10 Series (1920x1080) Fixed Network Camera

1/3" progressive scan RGB CMOS, Horizontal field of view: 110°, Vertical field of view: 61°.
SKU
0811-001 (M1065-L)

If you’re a business owner looking for a discreet, camera that’s attractively priced, simple to install and cost-effective to run, AXIS M1065-L Network Camera is just what you need. You get excellent Axis image quality – both during the day and at night. And a wealth of useful features. AXIS M1065-L is the perfect plug & play video surveillance camera for smaller stores and offices.

Features:

  • Built-in microphone and mini-speaker
  • PIR motion sensor
  • Power over Ethernet
  • Bracket for wall and corner mount
  • Day & night with IR illumination

  • Applications:

  • Meetings
  • Security/Surveillance
  • Remote Viewing
  • Video Conferencing
  • Webcasts/Remote Viewing
  • Image Sensor 1/3" progressive scan RGB CMOS
    Lens Fixed focal length, 2.8 mm, F2.0 Horizontal field of view: 110° Vertical field of view: 61° M12 mount, fixed iris, IR corrected
    Day & Night Automatically removable IR cut filter
    Minimum Illumination Color: 0.25 lux at 50 IRE F2.0
    B/W: 0.05 lux at 50 IRE F2.0, 0 lux with IR illumination on
    Shutter Time 1/28000 s to 1/5 s with 50 Hz
    1/32500 s to 1/5 s with 60 Hz
    Pan/Tilt/Zoom Digital PTZ
    Video Compression H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, Motion JPEG
    Resolutions 1920x1080 HDTV 1080p to 320x240
    Frame Rate Up to 25/30 fps (50/60 Hz) in all resolutions
    Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG Axis' Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264
    Image Settings Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Day/Night shift level, Rotation: 0°, 180°, Text and image overlay, Privacy masks, Mirroring of images, WDR
    Audio Streaming Two-way, half duplex
    Audio Compression AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate
    Audio input/output Built-in microphone (can be disabled), Built-in speaker 82 dB-SPL (at 0.5 m / 20 in)
    Security Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log
    Supported Protocols IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
    Application Programming Interface Open API for software integration, including VAPIX® and AXIS Camera Application Platform
    AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profile S
    Analytics AXIS Video Motion Detection 3, Audio detection Active tampering alarm, Support for AXIS Camera Application Platform, AXIS Cross Line Detection, AXIS Digital Autotracking and third-party applications
    Event Triggers Analytics, Edge storage events Built-in PIR
    Event Actions File upload: FTP, HTTP, network share and email
    Notification: email, HTTP, HTTPS and TCP Video and audio recording to edge storage, Activation of IR-LED, Audio clip playback, Overlay text Pre- and post-alarm video buffering
    Data Streaming Event Data
    Built-in Installation Aids Pixel Counter
    Casing Polycarbonate, Aluminium, recycled plastic Color: White NCS S 1002-B For repainting instructions of skin cover or casing and impact on warranty, contact your Axis partner.
    Sustainability PVC free, 64% recycled plastic
    Memory 512 MB RAM, 256 MB Flash
    Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 2.7 W, max 4.8 W 4.75–5.25 V DC, typical 2.5 W, max 4.7 W
    IR Illumination IR illumination, LED with adjustable intensity. Range up to 10 m (32 ft)
    Connectors Micro USB type B for power only RJ45 10BASE-T/100BASE-TX PoE
    Storage Support for microSD/microSDHC/microSDXC card Support for recording to dedicated network-attached storage (NAS) For SD card and NAS recommendations
    PIR Sensor Passive infrared (PIR) motion sensor with configurable sensitivity. Max range: 6 m (19.7 ft)
    Operating Conditions 0 °C to 40 °C (32 °F to 104 °F) Humidity 10-85% RH (non-condensing)
    Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F) Humidity 10-85% RH (non-condensing)
    Approvals EMC
    EN 55032 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KN24, KN-35
    Safety
    IEC/EN/UL 60950-1, IEC/EN 62471, EN 62471
    Dimensions 106 mm x 60 mm x 37 mm (4.17 x 2.36 x 1.46 in)
    Weight 134 g (0.30 lb)
    Included Accessories Installation Guide, Mount bracket, Table top stand, Windows decoder 1-user license
    Optional Accessories AXIS T8415 Installation Display T91A10 Mounting Kit
    Video Management Software AXIS Companion video management software, AXIS Camera Station, Video management software from Axis’ Application Development Partners
    Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese
    Warranty Axis 3-year warranty and AXIS Extended Warranty
