  • AXIS F1025 (1920x1200/1080) Image 1

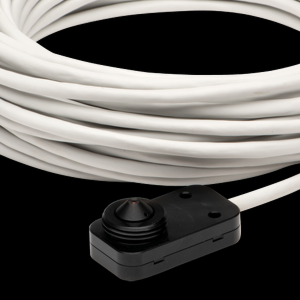

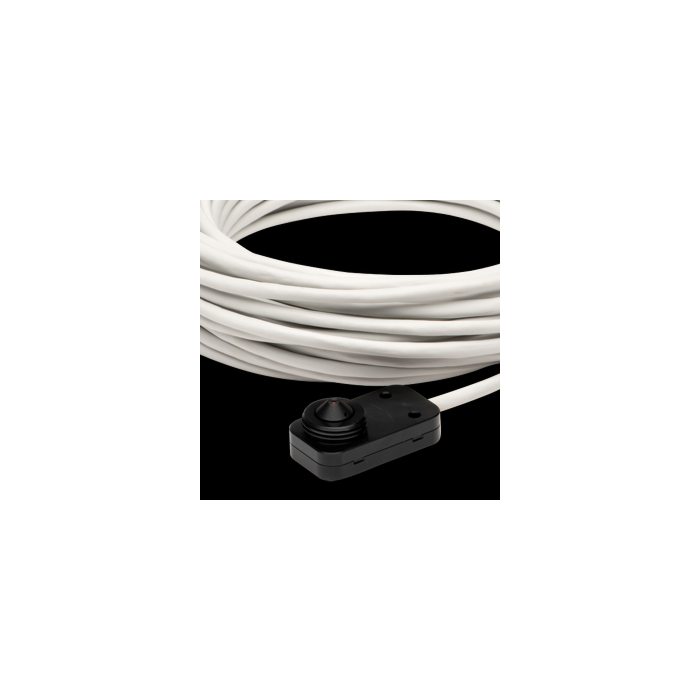

Axis F1025 (1920x1200) Sensor Unit

Quick Overview

1/2.8” (effective) progressive scan RGB CMOS, Fixed Iris
Overview

Axis F1025 Sensor Unit, together with an Axis F Main Unit, is ideal for use in extremely discreet indoor surveillance applications, such as in ATMs (automated teller machines), banks, stores, hotels and elevators. The small Axis F1025 unit can be installed, for instance, in tight places, in doorways, behind metal sheets or flush-mounted in a wall or ceiling, with only a pin hole visible for the lens.

Axis F1025 comprises an image sensor with 1080p resolution (1920 x 1080 pixels) and a pinhole lens that provides a wide 92° horizontal field of view.

Axis F1025 also supports Wide Dynamic Range (WDR) – Forensic Capture, which can be activated when the sensor unit is connected to a main unit that supports this feature. WDR – Forensic Capture enables a high level of detail to be visible in both the bright and dark areas of a scene.

Axis F1025 comes with a 3-m or 12-m (10 ft. or 39 ft.) pre-mounted cable for connection to an Axis F Main Unit. An Axis F8202 Straight Mounting Bracket is included for mounting on a flat surface.

Features:

  • Flexible, extremely discreet design for indoor use
  • Pinhole lens with 1080p resolution
  • Wide 92° horizontal field of view
  • Supports WDR – Forensic Capture (with AXIS F41/F44 Main Unit)

  • Applications:

  • Meetings
  • Security/Surveillance
  • Remote Viewing
  • Video Conferencing
  • Webcasts/Remote Viewing
  • Specifications
    Image Sensor

    1/2.8” (effective) progressive scan RGB CMOS

    Lens

    Fixed iris
    3.7 mm, F2.5
    With AXIS F34/F41/F44 in 1080p:
    Horizontal angle of view: 92°
    Vertical angle of view: 45°
    With AXIS F34/F44 in 720p:
    Horizontal angle of view: 56°
    Vertical angle of view: 29°

    Minimum Illumination

    Color: 0.3 lux

    Shutter Time

    With AXIS F34/F44:
    HDTV 720p 25/30 fps: 1/28000 s to 2 s
    1080p 12.5/15 fps: 1/22500 s to 2 s
    With AXIS F41:
    HDTV 1080p 25/30/50/60 fps: 1/143000 s to 2 s
    WUXGA (1920x1200) 25/30 fps: 1/143000 s to 2 s



    Resolutions

    1920x1200/1080

    Frame Rate

    Up to 50/60 fps (50/60 Hz)

    Casing

    Aluminum

    Operating Conditions

    -40 °C to 55 °C (-40 °F to 131 °F) Humidity 10-85% RH (non-condensing)

    Storage Conditions

    -40 °C to 65 °C (-40 °F to 149 °F)

    Approvals

    ECE R10 rev.04, EN 50121-4, IEC/EN/UL 60950-1,
    IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14,
    IEC 60068-2-30, IEC 60068-2-78, IEC 60529 IP4X, IEC 62236-4, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
    EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, EN 50581
    IEC 60068-2-6, IEC 60068-2-27

    Dimensions

    45 mm (1 3/4 in) ø 20 mm (13/16 in)

    Weight

    3 m / 1 ft. cable: 78 g (0.17 lb)
    12 m / 39 ft. cable: 328 g (0.72 lb)

    Included Accessories

    Installation Guide
    AXIS F8202 Straight Mounting Bracket

    Optional Accessories

    AXIS F8204 Mounting Band
    AXIS F8212 Trim Ring
    AXIS F8225 Pinhole Accessory
    AXIS F9201 Black/Silver Height Strip Housing

    Required Hardware

    AXIS F34/F41/F44 Main Unit

    Warranty Axis 3-year warranty and AXIS Extended Warranty
