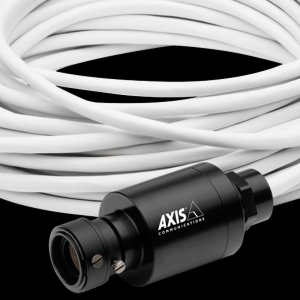

Axis F1015 | Sensor Unit Image #1

Axis F1015 (1920x1200) Sensor Unit

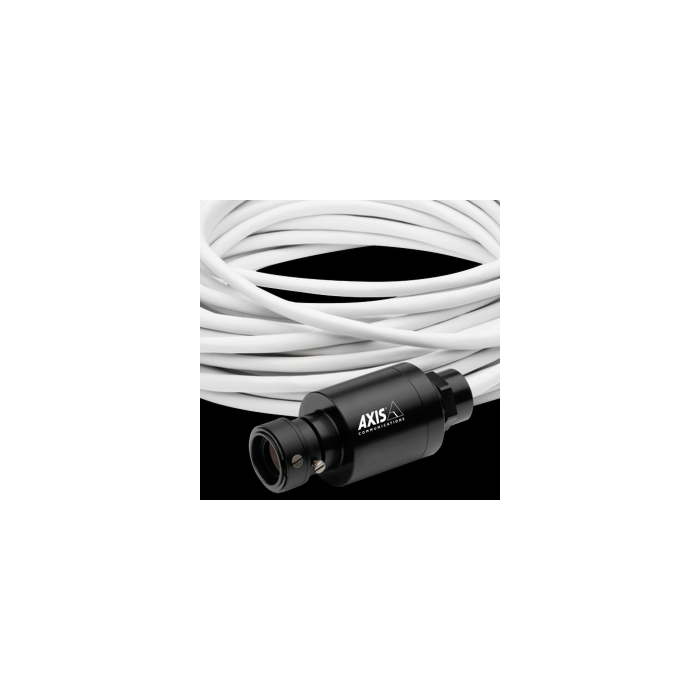

Axis F1005-E (F1005E) (1920x1200) Sensor Unit

1/2.8” (effective) progressive scan RGB CMOS, Fixed iris
SKU
AXIS F1005-E

Axis F1005-E Sensor Unit, together with an Axis F Main Unit, is ideal for use in highly discreet indoor, outdoor and mobile surveillance applications. Axis F1005-E can be discreetly installed in tight places, flush-mounted in a wall or ceiling, or incorporated in a lightbar on top of an emergency vehicle. The rugged, IP66-rated sensor unit withstands dust, rain, snow, vibrations, shock and temperature fluctuations.

Axis F1005-E comprises an image sensor with a 1080p resolution (1920 x 1080 pixels) and a fixed lens that provides a wide 113° horizontal field of view. Axis F1005-E also supports Wide Dynamic Range (WDR) – Forensic Capture, which can be activated when the sensor unit is connected to a main unit that supports this feature. WDR – Forensic Capture enables a high level of detail to be visible in both the bright and dark areas of a scene.

Axis F1005-E comes with a 3-m or 12-m (10 ft. or 39 ft.) pre-mounted cable for connection to an Axis F Main Unit. An Axis F8201 Vari-angle Mounting Bracket is included and enables the sensor unit to be secured and tilted in any position.

Features:

  • Flexible, rugged design for indoor, outdoor and mobile use
  • Fixed lens with 1080p resolution
  • Wide 113° horizontal field of view
  • Supports WDR – Forensic Capture (with AXIS F41/F44 Main Unit)

  • Applications:

  • Remote Viewing
  • Surveillance
  • Security
  • UAV Applications
  • Pipe Inspection
  • Outdoor Capability
  • Image Sensor  1/2.8” (effective) progressive scan RGB CMOS
    Lens

    Fixed iris
    2.8 mm, F2.0
    With AXIS F34/F41/F44 in 1080p:
    Horizontal angle of view: 113°
    Vertical angle of view: 62°
    With AXIS F34/F44 in 720p:
    Horizontal angle of view: 73°
    Vertical angle of view: 41°

    Minimum Illumination

    Color: 0.3 lux

    Shutter Time

    With AXIS F34/F44:
    HDTV 720p 25/30 fps: 1/28000 s to 2 s
    1080p 12.5/15 fps: 1/22500 s to 2 s

    With AXIS F41:
    HDTV 1080p 25/30/50/60 fps: 1/143000 s to 2 s
    WUXGA (1920x1200) 25/30 fps: 1/143000 s to 2 s

    Resolutions

    1920x1200/1080

    Frame Rate Up to 50/60 fps with power line frequency 50/60 Hz
    Casing

    IP66-, IP67-rated, Aluminum

    Operating Conditions –30°C to 55°C (–22 °F to 131 °F) Humidity 10–100% RH (condensing)
    Storage Conditions -40 °C to 65 °C (-40 °F to 149 °F)
    Approvals

    ECE R10 rev.04, EN 50121-4, IEC/EN/UL 60950-1,
    IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14,
    IEC 60068-2-30, IEC 60068-2-78, IEC 60529 IP4X, IEC 62236-4, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
    EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, EN 50581
    IEC 60068-2-60, IEC 60529 IP66/IP67,
    IEC 60721-3-5 5M3 (vibration, shock), IEC/EN/UL 60950-22, NEMA 250 Type 4X

    Dimensions

    62 mm (2 7/16 in) ø 30 mm (1 3/16 in)

    Weight

    3 m / 10 ft. cable: 116 g (0.26 lb)
    12 m / 39 ft. cable: 366 g (0.81 lb)

    Included Accessories

    Installation Guide, AXIS F8201 Vari-angle Mounting Bracket

    Required Hardware

    AXIS F34/F41/F44 Main Unit

    Optional Accesories

    AXIS F8203 Fixed Mount Bracket
    AXIS F8204 Mounting Band
    AXIS F8205 Bullet Accessory
    AXIS F8212 Trim Ring
    AXIS F8401 Clear Lens Protector

    Warranty Axis 3-year warranty and AXIS Extended Warranty
