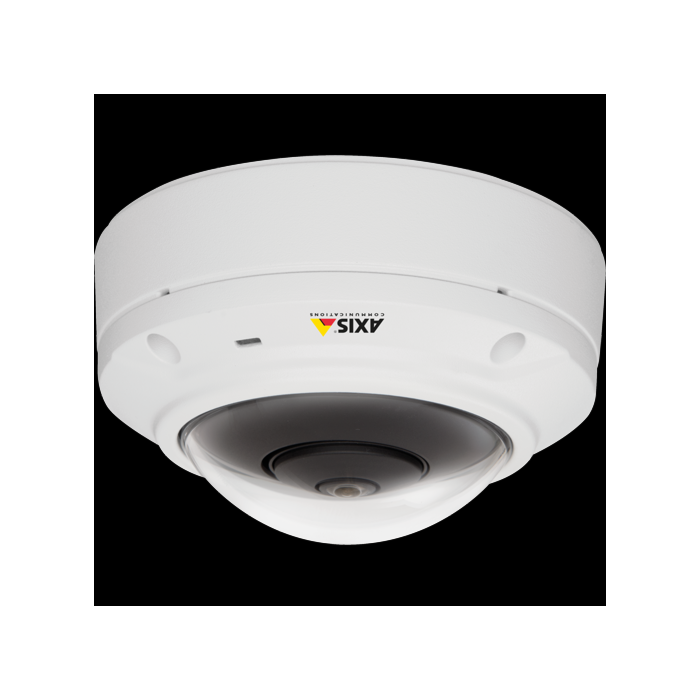

Axis M3037-PVE (3037PVE) (2592x1944) Network Camera
*Product is discontinued, Replacement Option: M3077-PLVE
1/3.2” Progressive Scan RGB CMOS, Fixed, 1.27 mm, F2.0, M12 Mount, Fixed Iris, IR corrected.
SKU
Axis 3037-PVE
Axis M3037-PVE Network Camera is a cost-effective video and audio surveillance solution that offers 360/270/180 views, indoors or outdoors, in any light conditions. The compact, vandal-resistant and weather-proof mini dome provides two-way audio with built-in microphone and speaker. The camera is suitable where audio and video need to be captured, such as at the entrance of a hotel, boutique, restaurant or office, where it can help detect activity, track the flow of people and improve situational awareness.
Features:
Applications:
| Image Sensor | 1/3.2” progressive scan RGB CMOS |
| Lens |
Fixed, 1.27 mm, F2.0, M12 mount, Fixed iris, IR corrected Horizontal field of view: 187° Vertical field of view: 168° |
| Day and Night |
Automatically removable infrared-cut filter |
| Minimum Illumination |
Color: 0.3-200000 lux B/W: 0.06 lux |
| Shutter Time |
1/24500 s to 2 s |
| Camera Angle Adjustment |
Rotation ±180° |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) H.264 Baseline and Main Profile, Motion JPEG |
| Resolutions | Overview: 2592x1944 (5 MP) to 160x120 Panorama: 1920x720 to 320x120 270° Corner right or left: 1920x720 to 320x120 Double Panorama: 1920x1440 to 160x120 270° Corner right and left: 1920x1440 to 160x120 Quad view: 1920x1440 to 160x120 View area 1-4: 1920x1440 to 160x90 |
| Frame Rate | 12 fps in 360° overview and panoramic views |
| Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth, VBR/MBR H.264 |
| Multi-View Streaming | 360° overview. Dewarped panorama, double panorama, 270° corner, and quad views. Up to 4 individually cropped out and dewarped view areas. When streaming 4 dewarped view areas and one 360° overview in VGA resolution, the frame rate is 10 fps per stream |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, WDR – dynamic contrast, fine tuning of behavior at low light, rotation: 0°, 180°, text and image overlay, privacy mask, mirroring of images |
| Pan/Tilt/Zoom | Digital PTZ of view areas, preset positions, guard tour. Digital PT of panorama, double panorama, 270° corner and quad views |
| Audio Streaming | Two-way, full duplex Echo cancellation and noise reduction |
| Audio Compression | AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate |
| Audio Input | Built-in microphone (can be disabled) |
| Audio Output | Built-in speaker 84 dB (at 0.5 m / 20 in) |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log |
| Supported Protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, SIP |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Camera Connection ONVIF Profile S, specification Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
| Analytics | AXIS Video motion detection, Active tampering alarm, Audio detection Support for AXIS Camera Application Platform enabling installation of AXIS Cross Line Detection and third-party applications |
| Event Triggers | Analytics, External input, Edge storage events |
| Event Actions | File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP and SNMP trap External output activation, pre- and post-alarm video buffering, overlay text, make call, PTZ preset, guard tour, video recording to edge storage |
| Built-in Installation Aids | Pixel counter |
| Data Streaming | Event Data |
| Casing | IP66-rated, IK10 impact-resistant aluminum casing with transparent, polycarbonate cover and dehumidifying membrane, captive screws (Resistorx® 10) Color: White NCS S 1002-B |
| Memory | 512 MB RAM, 128 MB Flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2, max 5.1 W, typical 3.4 W |
| Connectors | Male RJ45 10BASE-T/100BASE-TX PoE on a 2 m (6.6 ft) network cable. Warranty can be maintained even when cable is cut, for more information, contact your Axis partner. Terminal block for 1 alarm input and 1 output |
| Storage | Support for microSD/microSDHC/microSDXC card Support for recording to dedicated network-attached storage (NAS) For SD card and NAS recommendations |
| Operating Conditions | -30 °C to 50 °C (-22 °F to 122 °F) Humidity 10–100% RH (condensing) |
| Approvals | EMC EN 55022 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24 Safety IEC/EN/UL 60950-22 Environment EN 50581, IEC 60529, IP66, IEC 62262 IK10 |
| Dimensions | 132 x 132 x 73 mm (5 3/16 x 5 3/16 x 2 7/8 in) |
| Weight | 740 g (1.6 lb) |
| Included Accessories | Installation Guide, Windows decoder 1-user license, drill hole template, Resistorx® L-key, terminal block connector |
| Optional Accessories | AXIS T94F02D Pendant Kit with sunshield Network Cable Coupler IP66 (can fit inside AXIS T94F02D Pendant Kit) AXIS T91 Mounting Accessories, AXIS T94F01M J-Box/Gang Box Plate, AXIS T94F01P Conduit Back Box, Skin covers |
| Video Management Software | AXIS Companion, AXIS Camera Station and video management software from Axis’ Application Development Partners (not included) |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | Axis 3–year warranty and AXIS Extended Warranty |
