  • Aegis AEG-Controller-MP1 Controller for Tamron MP1010M-VC block cameras Image 1

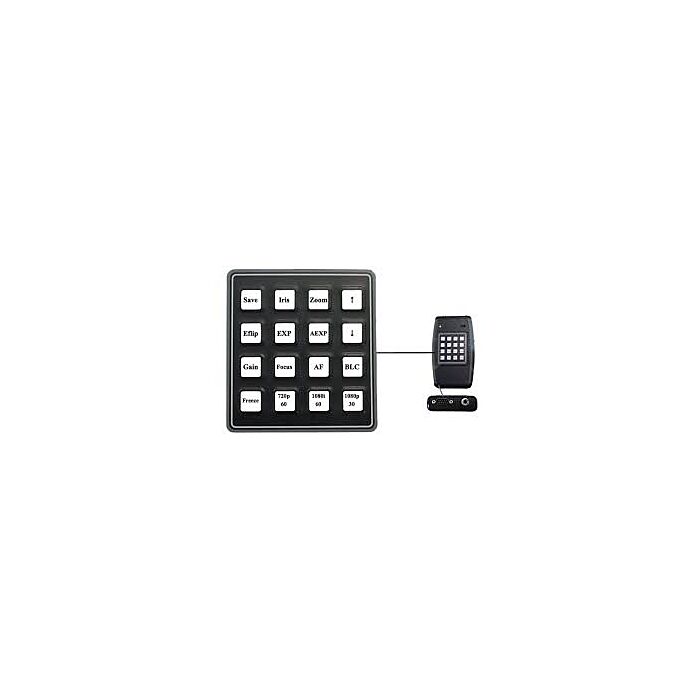

AVP AEG-Controller-MP1 Controller for Tamron MP1010M-VC block cameras

Quick Overview

Sleek, Portable, Handheld controllers ideal for the Tamron MP1010M-VC block camera.
Overview

Flexible, configurable controllers designed to work with Tamron MP1010M-VC cameras. These controllers can be programmed to control a majority of MP1010M-VC camera functions. Custom program configurations are available. A sales representative can assist in determining the best configuration to meet individual needs.

Features:

For the Tamron MP1010M-VC compact block camera, the controller can be configured to control:

  • Power - On/Off
  • Zoom - Tele
  • Zoom - Wide
  • Zoom Speed
  • Digital Zoom - On/Off
  • Focus - Far
  • Focus - Near
  • Focus - Auto/Manual
  • Freeze
  • Iris - Open/Close/Reset
  • Image Flip
  • Capability to switch between HD720p, HD1080i and HD1080p
  • Presets and more...
  • Specifications
    Popular Controller Functions
    Save Saves current camera settings, to be the default camera state for future camera power-ups.
    Iris  Opens and closes the lens iris which controls amount of light that comes in and out. Use up and down keys to increase or decrease iris.
    Zoom Activates up and down arrows for controlling the lens, press zoom button the zoom by pressing the up arrow (tele end) and down arrow for (wide end).
    Up and Down Arrows These buttons are activated by Iris, Zoom, EXP, Gain, Focus, & Bright. The up arrow will increase (+) while the down arrow decreases (-).
    E-Flip This function turns the video output from the camera upside down.
    Mirror This function switches image from left to right.
    EXP Sets the camera in Manual Exposure mode 22 steps ranging from 1/1 shutter to 1/10000 .  Use up and down keys to increase or decrease shutter speed.
    AEXP Auto exposure will allow video signal to output the optimum image for subjects from low light conditions to bright light conditions.
    Gain Changes the db of the camera, through 24 manual steps.  Use up and down keys to increase or decrease gain.
    AF Sets the camera in auto focus mode.
    Focus Sets the camera in manual focus mode, Use up and down keys adjust focus.
    Freeze This function captures an image in the field memory and displays image on screen.
    BLC When the background of the subject is to bright, back light compensation will automatically adjust and make the subject bright and the background darker.
    720P 60 Sets the camera into 720P 60fps mode, camera must be powered down in order for the change to take place.
    1080i 60 Sets the camera into 1080i 60fps mode, camera must be powered down in order for the change to take place.
    1080P 30 Sets the camera into 1080P 30fps mode, camera must be powered down in order for the change to take place.
    Specifications
    Dimensions HxWxL (MM) 20x148X85
    Power 12V DC via the 4pin jack or 9V DC battery
