  • AVP 43MM Close Up Kit Image1

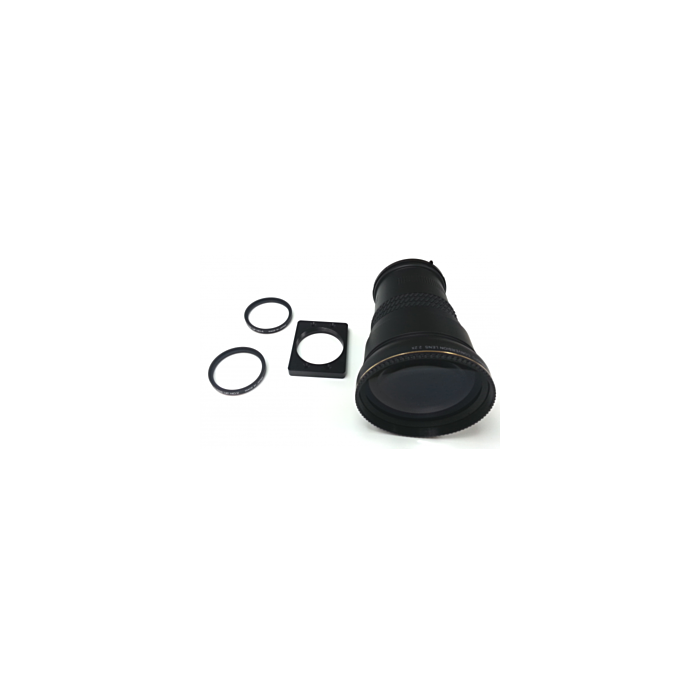

AVP 43MM Close Up Kit

Quick Overview

This close-up adapter kit provides you with macro viewing capability for many of the Sony FCB cameras. Similar to reading glasses, also known as diopters, the close-up lens act similar to magnifiers. The 43mm close-up-kit allows you to focus much closer to a object and increases magnification for circuit board inspection, solder defects, microscopy, and pass or fail testing. Focus in without losing background complexities with the dynamic 43mm-close-up-kit from Aegis Electronics Group Inc.

Overview

The Aegis FCB lens adapter connects a wide variety of 43mm lenses and filters to Sony FCB block cameras, to support a variety of needs.

Features:

  • Black anodized finish
  • Mounts to Sony FCBEH6300 & FCBEH6500, FCBEV7300, FCBEV7320, FCBEV7500, and FCBEV7520
  • Mounting screws included
  • Kit includes #2 & #4 close-up lenses
  • Lenses are double-threaded, for in-series mounting to increase magnification
  • Specifications
    Adapter Bezel
    Dimensions 58 x 48 x 8.5mm
    Material Aluminum
    Finish Anodized Black
    Lens Thread 43 x 0.75mm
    Screw Pattern 18 x 48mm M2
    Macro Lenses
    Diopter +2 and +4
    Thread 43 x 0.75mm (both sides of lens)
    Finish Black
