Aegis USB-3.0-EH-H11

Quick Overview

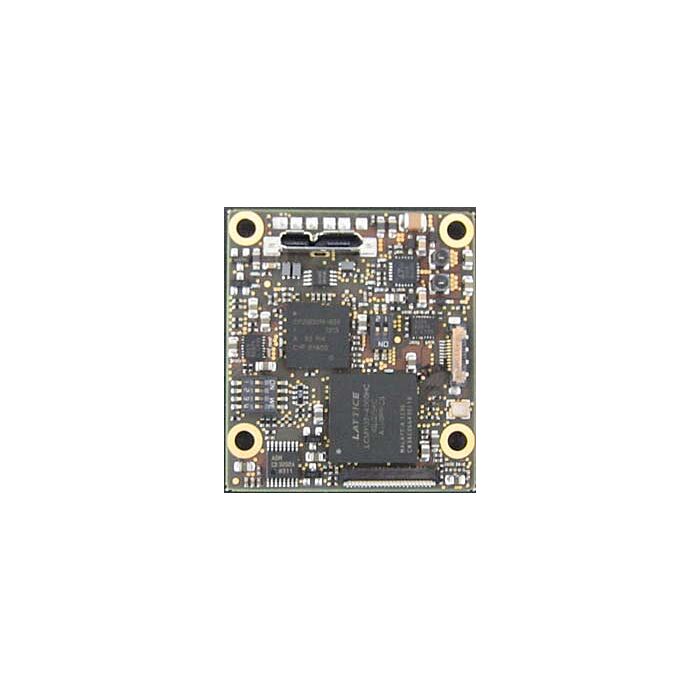

The USB-3.0-EH-H11 Interface Board for Sony FCB-H11 cameras.
Overview

Features:

    •    Provides a small size, easy to use HDTV USB 3.0 compliant video streaming capture solution
    •    Up to 1080p30 uncompressed HDTV video data, 4:2:2 YUV format
    •    The module receives digital video signals at the input and sends UVC (USB Video Class) compliant data
    •    packets containing digital video payload to a connected host computer
    •    Operates always as Super Speed USB3.0 device (Host or OTG operation modes are not supported)
    •    Host computer must run a UVC capable operating system (e.g. Microsoft Windows 7)
    •    Parallel up- and downstream of camera control and status data is possible (USB CDC)
    •    The input supports multiplexed LVDS based video data
    •    LVDS data format provided by FCB-EH, FCB-SE and FCB-H11 camera blocks
    •    Full USB bus powered camera solution possible
    •    Power supply voltage for camera is generated onboard

Specifications
