Aegis SDI-HDMI-EH-GM Interface Board

Quick Overview

HDMI/HD-SDI Output Video Transceiver

Availability: In stock

More Views

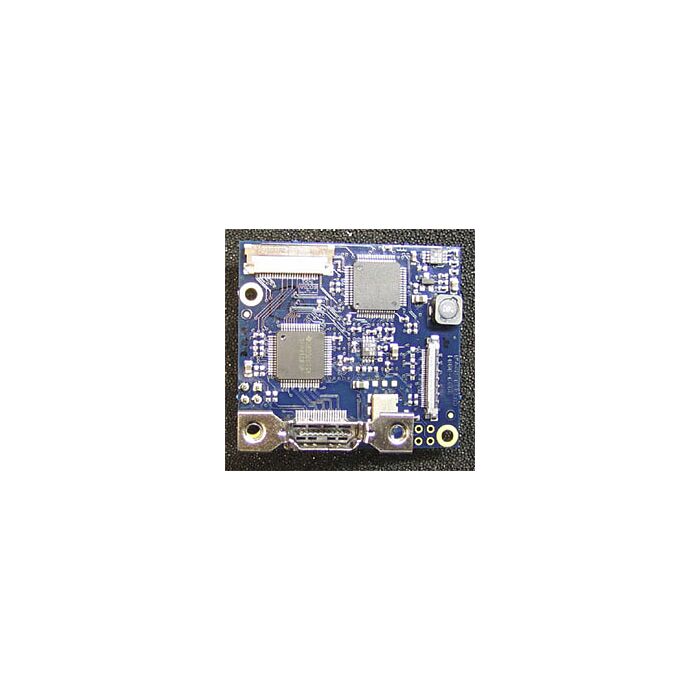

Aegis SDI-HDMI-EH-GM Interface Board.

  • Model: /i/f/ifbex232-sdi-eh-gm-board_1.jpg

Additional Information

Overview

Thunder Link is a family of small form factor modules for formatting and converting generic digital video streams to standard compliant formats. Different interface standards are supported from the transmitter side including DVI/HDMI, VGA, HD-SDI, SDI and USB.

The modules connect to the digital video interface of Sony's FCB-H, FCB-EH and FCB-EX block cameras and support several progressive and interlace HDTV or SDTV formats. As no analog to digital conversion is done on these modules, best output image quality is guaranteed.

FEATURES:

  • Connects to Sony FCBEH6300FCBEH3300FCBEH3400FCBEH3150FCBSE600 (requires 5V) camera blocks
  • Digital LVDS video input from camera
  • 1080i, 1080p and 720p output standard support
  • 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz and 60Hz frame rates
  • Automatic input standard detection
  • Dual HD-SDI outputs to drive two cables simultaneously
  • HD-SDI outputs compliant to SMPTE292M / SMPTE274M / SMPTE296M
  • HDMI video output
  • Integrated deinterlacer1 for 1080p 50/59.94/60Hz output via HDMI port
  • Native digital signal processing chain for best image quality (no scaling)
  • Breakout of camera analog HDTV YPbPr and CVBS video
  • Selectable serial control interface (RS232 or 3.3V TTL)
  • Supply voltage: 7V to 12V DC regulated
  • Tiny module size 46mm x 42mm
  • Triple output version TL6050 and HDMI only version TL6050H
Specifications
INPUTS:
DATA LVDS digital video (from camera)
CLOCK LVDS (from camera)
CONTROL Rx 3.3V TTL serial control interface
ANALOG YPbPr and CVBS video 1Vpp into 75 ohms
OUTPUTS:
CONTROL Tx
3.3V TTL serial control interface
POWER INPUT:
7V TO 12V DC regulated
Power consumption (FCB-EH6300 + SDI-HDMI-EH-GM)
5.9 W (cam motors inactive)
Power consumption value conditions:
Power input 12V DC
Ambient temperature +25°C/77°F
Humidity 30%
OPERATING CONDITIONS:
Ambient Temperature (min/max): -5°C/+60°C = 23°F/140°F
Humidity:
20%-80%
STORAGE CONDITIONS:
Temperature (min/max): -20°C/+60°C = -4°F/140°F
Humidity:
20%-80%
