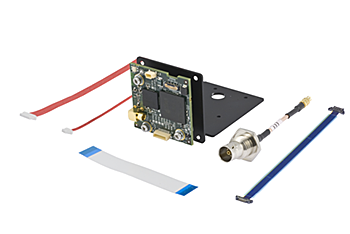

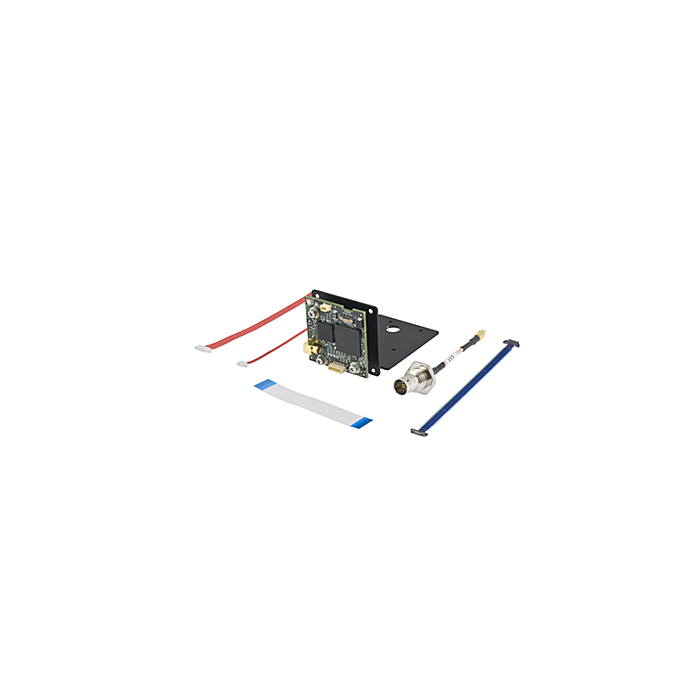

Aegis SDI-H11-AS Interface Board Interface Board for the Sony FCBH11 camera

Quick Overview

Interface Board for the Sony FCBH11 camera
Overview

Features:

  • Interface Board for Sony FCB-H11
  • High Definition Video - 1080i/720p
  • Comes complete with module, cables, and bracket
  • Achieves optimum image quality with the camera's digital output port
  • RS-232 communications port
  • Video mode selection
  • HD and SD analog video accessible
  • Specifications
    Digital video output
    HD-SDI: 1080i/50, 1080i/59.94Hz, 720p/50Hz, 720p/59.94Hz
    Connector (HD-SDI)
    MCX7-J-P-H-RA-TH1-SKT
    Power
    90mA @ 9V (unconnected) 525mA @ 9v (connected)
    Environmental
    0°C to 55°C
    Storage Temperature
    -15°C to 70°C
    Dimensions
    488mm X 480mm X 13.6mm
    Humidity
    10% to 90% non-condensing (operating and storage)
    No Video available
    SDIH11AS Interface Board
