  • Aegis SDI-GPMH HD-SDI PCB for use with the Panasonic GP-MH310 Image

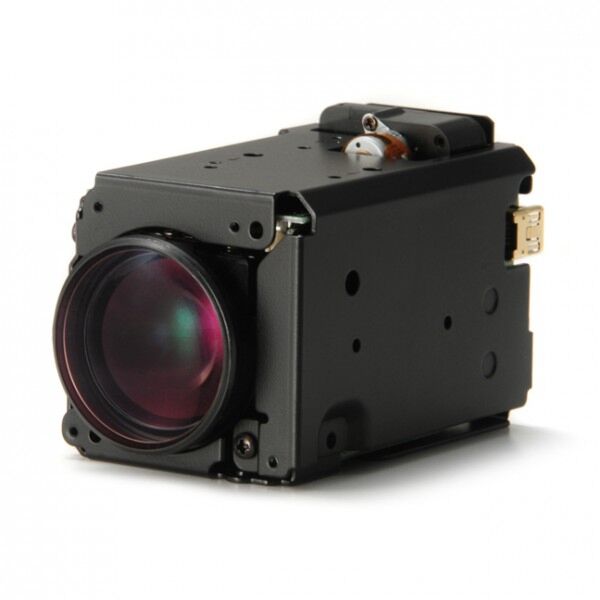

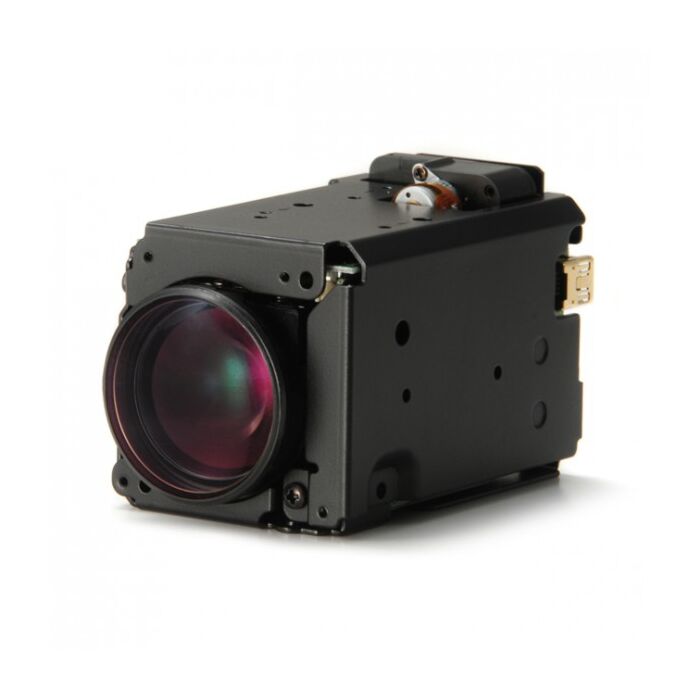

Aegis SDI-GPMH HD-SDI PCB for use with the Panasonic GP-MH310

Quick Overview

This product provides a much more flexible solution for HD-SDI output and offers the end user a simpler installation of the camera which is capable of carrying HDTV video signals across long distances.
Overview This product provides a much more flexible solution for HD-SDI output and offers the end user a simpler installation of the camera which is capable of carrying HDTV video signals across long distances. This will provide the end user a clean, crisp, high definition picture. The details about the signal output/input will be updated soon.
Specifications
Input
  • Voltage +6.0 - 9.0V
  • RS-232C
  • LVDS from GP-MH310
Output
  • HD-SDI (SMPTE292M/259M)
       - 1080p (30/29.97/25Hz)
       - 1080i (60/59.94/50Hz)
       - 720p (30/29.97/25Hz)
  • 1.485 or 1.485/1.001 GHz
  • 800mV±10%
  • 75
  • Analog out: Y/Pb/Pr
  • 52(W) x 48(H) mm

Connector and Pin Assignment

J2 Pin configuration

Pin#
Function
Pin No.
Function
1
Y 2 Pb
3
Pr 4 GND
5
Power (+6.0 - 9.0V) 6 GND
7
Rx 8 Tx
9
Power 10 GND
11
Reset (Low Active) 12 GND


Included:
SDI-GPMH board
10 Pin Micro Coax cable
Mounting screws and spacers
Mating 12 pin connector
