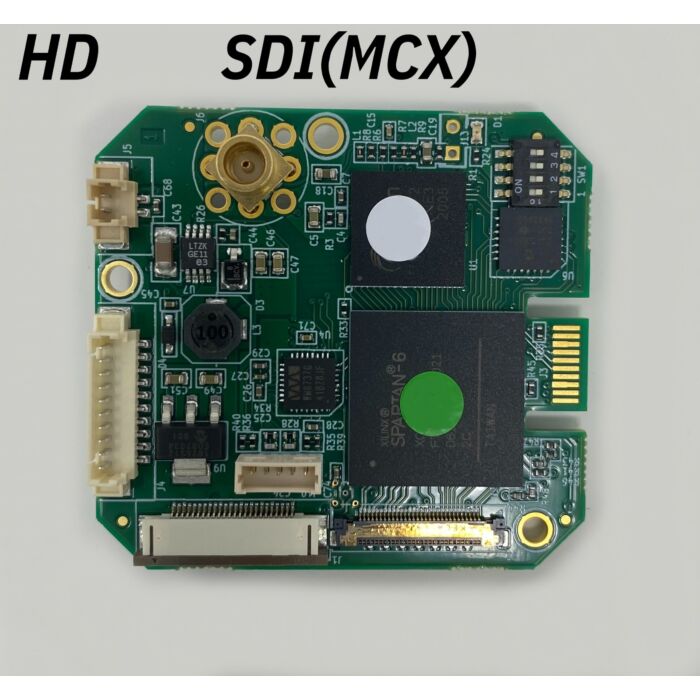

  • SDI-EV 3G-SDI Interface Board Image 1

Aegis SDI-EV for Sony FCB-EH, FCB-EV and FCB-SE Series of HD Block Cameras

Quick Overview

3G-HDSDI, HD Comp & Standard Definition Interface Board for Sony FCB-EV7500, FCB-EV7100 and FCB-EV5500 cameras.
Overview

Features:

  • SMPTE-424M 3G HDSDI Digital Interface
  • Automatic SONY camera recognition
  • Analog HD and SD video output.
  • Enhanced HDSDI signal quality : LOW jitter
  • Video format selection by micro switch.
  • Embedded Color bar & pathologic charts & Embedded cross reticle
  • TTL or RS232 VISCA dialog level.
  • 5 to 12 VDC protected and EMC filtered power supply for interface and camera
  • Specifications
    Digital Video Output 3G HDSDI SMPTE 292 M
    Analog Video Output Y, Pb , Pr 75 ohms, 1V .
    Video Output Standard Configuration Micro Switches
    Camera Setting RS232 , RX , TX , VISCA
    Connector BNC , (SMB, MCX.: OPTIONS)
    Power 6 to 12 VDC, 6 W (including camera) 5V for SE 600
    Environmental 0°C to 60°C
    Storage -20°C to 60°C
    Regulation EMC FCC part 15, PCB : UL 94 V0
    Dimensions ( mm) 48(H) x 45(L) x 20(P)
