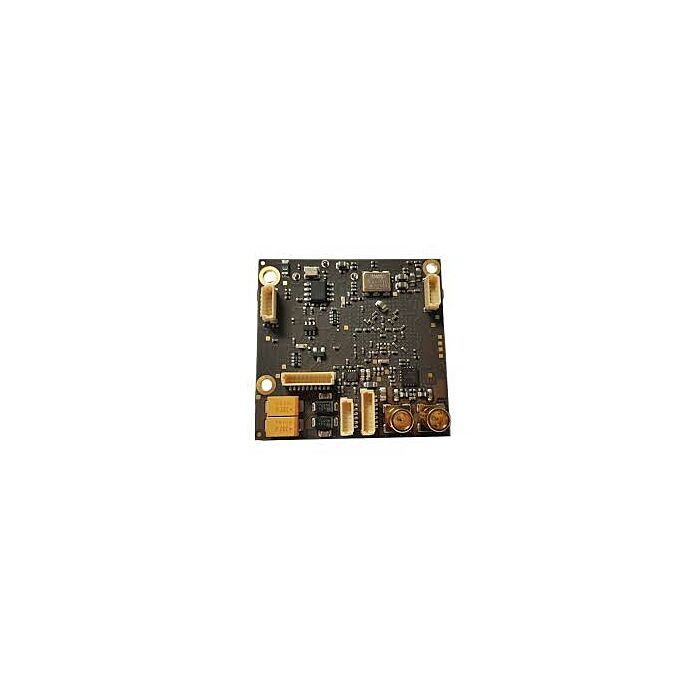

  • Aegis SDI-EV-GM for Sony FCB-EH, FCB-EV and FCB-SE Series of HD Block Cameras Image 1

Aegis SDI-EV-GM for Sony FCB-EH, FCB-EV and FCB-SE Series of HD Block Cameras

Quick Overview

1080p and 720p output at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz and 25Hz, Dual 3G/HD-SDI outputs compliant to SMPTE424M / SMPTE292M.
Overview

The Aegis SDI-EV-GM is a small form factor module for formatting and converting generic digital video streams to standard compliant formats. Different interface standards are supported from the transmitter side including DVI/HDMI, VGA, 3G-SDI, HD-SDI, SDI, CVBS and USB. Supported physical media are copper and fibre cables. These modules connect to the digital video interface of Sony’s FCB-EV, FCB-H, FCB-EH or FCB-EX block cameras and support several progressive and interlace HDTV or SDTV formats. As no analog to digital conversion is done on these modules, excellent output image quality is achieved.

Features:

  • Supports Sony FCB-EV7500/7310/7300/7100/5500/5300
  • Supports all Sony FCB-EH camera blocks and FCB-SE600
  • Digital 4Ch./8Ch. LVDS video input from camera
  • 1080p and 720p output at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz and 25Hz
  • 1080i output at 60Hz, 59.94Hz and 50Hz
  • Full automatic video input standard detection
  • Dual 3G/HD-SDI outputs compliant to SMPTE424M / SMPTE292M
  • Native digital signal processing chain for best image quality
  • Breakout of camera analog HDTV YPbPr and CVBS video*
  • RS232 and TTL level serial control interface
  • Robust RS485 differential serial control interface
  • Supply voltage 5V or 12V DC regulated
  • Temperature monitoring with alert function
  • Specifications
