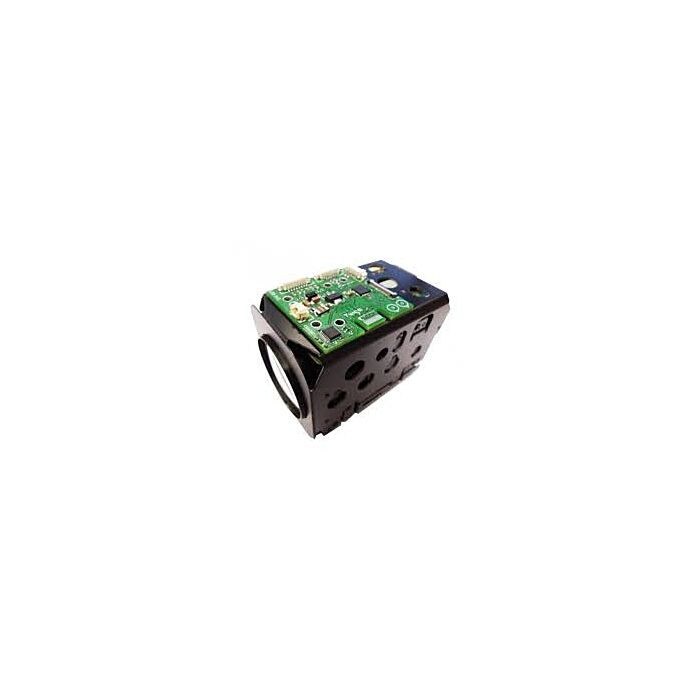

  • Aegis HDCOMP-EH3150 Image 1

Aegis HDCOMP-EH3150 for Sony FCB-EH3150 HD Block Camera

Quick Overview

Control board for Sony FCB, HD and EH series.
Overview

This Ten Programmable Key Switch HD Component Interface Board allows easy remote camera control of zoom, focus, memory, freeze and ICR functions.

Features:

  • Analog HD or SD video output
  • TTL/RS232 VISCA dialog level
  • 6 to 12 V DC protected power supply
  • Specifications
    Analog Video Output For FCBEH3150
    Camera Setting  RS232, RX, TX, VISCA and 10 ways of key switches
    Power 6 to 12 VDC, 5W (including camera) (5 volts for Se 600)
    Environmental 0°C to 60°C
    Storage -20°C to 60°C
    Dimensions 50.0 x 35.0 x 6.3 mm
    Content Control Board
    SONY Micro Coaxial Cable 30 ways, LVDS cable, USL20-30SS-005-C
    Power Input Wires 2 ways harness, 200mm length for power connector (J7)
    HD Analog Video Output Wires 6 ways harness, 200mm length for HD video signal connector (J5)
    Remote Control (RS232) 7 ways harness, 200mm length for VISCA serial RS232 and remote control (J2)
    Remote Control (Key Switches) 8 ways harness, 200 mm length for camera remote control (J4)
