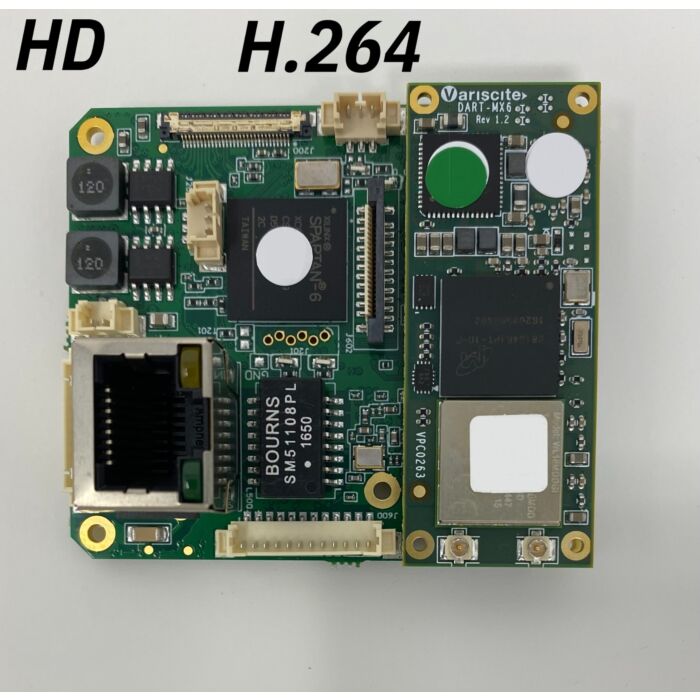

Aegis H.264-RM (H.264RM) Red Mamba IP Video Encoding Board

*Product is discontinued, Replacement Option: Aegis H.264-RM-Neo

Video processing and streaming platform

SKU
Aegis H.264-RM

Red Mamba IP video encoding board has been specifically designed for compact embedded vision systems. Used in conjunction with a iMX6 Quad core Cortex A9 processor this tiny and powerful module offers a h.264 hardware encoder and enables low latency video stream over Ethernet or WiFi.

Features:

  • i.MX6 Quad Core ARM CortexTM -A9 processor
  • Embedded Linux
  • Low latency h.264 encoding / decoding
  • Streaming over IP & WIFI
  • ONVIF protocol
  • LVDS - MIPI camera inputs
  • RS232, RS485
  • Storage on SDHD/SDXT Card
  • Compact, low power consumption
Video encoding / decoding
1080p60 H.264 Decode, 1080p30 H.264 Encode
Streaming RTSP stream (128 to 20000 kbit/s)
LVDS x1
HDMI  x 1-1.4a (1920x1080)
Ethernet 10/100 Mbit/s (Remote RJ45)
Wi-Fi (option over USB port) 802.11 a/b/g/h + MIMO
Micro USB OTG/Host UART x1
RS485 x3 up to 3.6Mbps x 1
RS232 x1
GPIO's Up to 8
CPU Name/type NXP/Freescale i.MX6 Dual or Quad ARM CortexTM-A9 Core
CPU clock (Max) Memory Up to 800MHz
LPDDR2 RAM Up to 1GB
eMMC NAND Flash (8bit) OS support Up to 64GB eMMC storage
Linux  Yocto, Linux
Supply Voltage 7 to 12VDC
Digital I/O voltage 3.3V
Operating Temperature 0 °C to 60 °C
Storage Temperature -20 °C to 60 °C
Dimension 50mm x 57mm x 15mm (Remote RJ45 connector)
