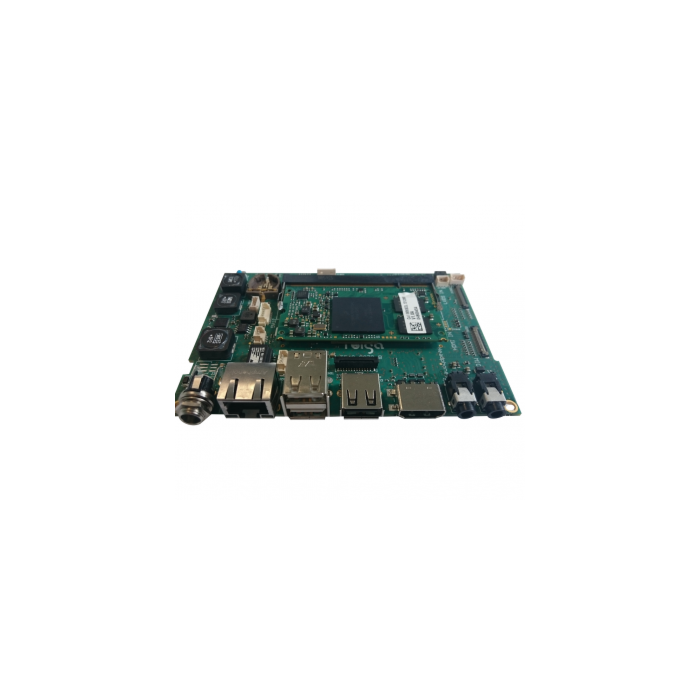

  • Aegis H.264-BL Blue Impala Image 1

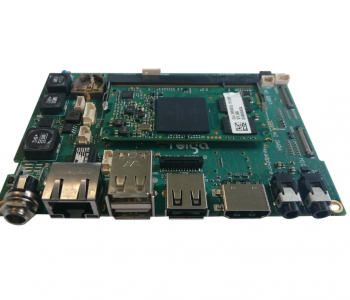

Aegis H.264-BL Blue Impala Video Encoding Board

Quick Overview

This embedded vision platform has been specifically designed for video applications. It features a LVDS industrial camera block input and can be delivered with HDMI and HD-SDI inputs options.
Overview

The Blue Impala video processing board offers a low latency HDMI output for video display, H.264 encoding and decoding, 10/100 Mbit/s Ethernet for video stream, bi-directional communication, USB 2 port for Wi-FI connection or external storage, local recording MicroSD Card.

Features:

  • i.MX 6 Dual Core ARM Cortex-A9
  • FPGA real time pre-processing
  • Embedded Linux
  • Open source software
  • Image processing library
  • Low latency h.264 encoding/decoding
  • Supports LVDS camera inputs
  • Ethernet, USB, HDMI output
  • ONVIF protocol
  • GPIO's, UART, SPI, I2C
  • Local recording on SD-Card
  • Specifications
    Video encoding / decoding
    h.264 Constrained Baseline, Baseline Profile, Main, High Profile - Up to 1080p30 (14Mbps)
    Streaming RTSP stream (128 to 20000 kbit/s)
    LVDS x1
    HDMI /HD-SDI (option) HDMI x 1-1.4a (266 Mpixels) / HD-SDI Loop via expansion board
    Parallel RGB LCD Interface Up to WUXGA (1920x1200) resolution + Touchscreen ADC + Backlight up to 50V (option)
    Ethernet 10/100 Mbit/s (RJ45)
    Wi-Fi (option over USB port) 802.11 a/b/g/h + MIMO
    SD Card On-board
    USB Host/device 3x USB 2.0 High Speed
    UART + IRDA x3 up to 3.6Mbps
    I2C / SPI x1 option / x1
    GPIO's  Up to 16
    RTC On-board + battery backup
    Freescale SOC MCIMX6U5DVM10 AC
    SoC Family / CPU Type i.MX 6 Dual Lite / ARM CortexTM-A9 processor dual core
    CPU frequency (Max) 996MHz
    DDR3 RAM SIZE 512MByte
    eMMC NAND Flash (8bit) 4GByte
    Linux Yocto, Linux distribution Poky 1.8.1
    Supply Voltage 12VDC- (optional 18 to 36VDC)
    Operating / Storage Temperature Operating: 0°C to 60°C / Storage: -20°C to 60°C
    Dimension 120mm x 80mm x 22mm
