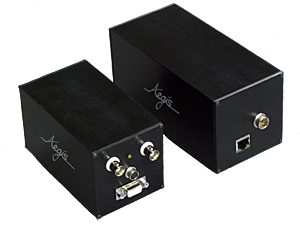

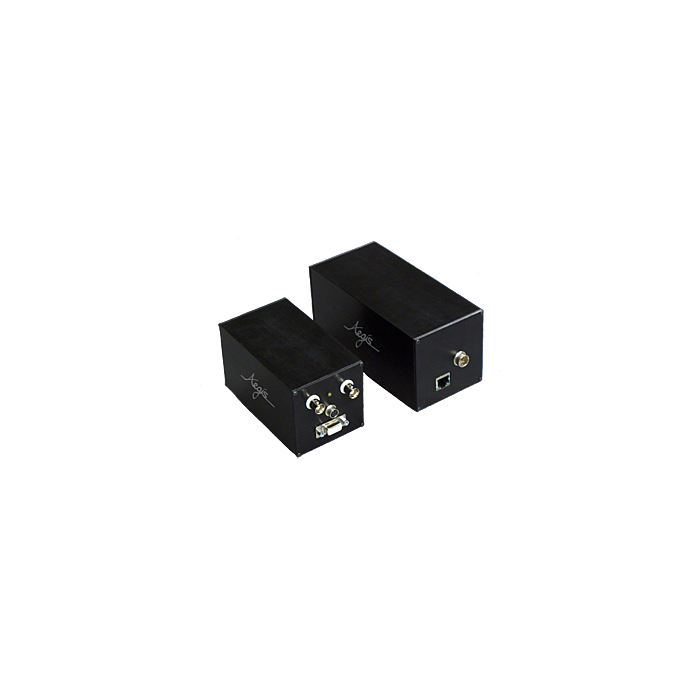

Aegis AEG-6300 Housed Block Camera Assemblies (HDSDI, GigE, HDMI or Composite output available)

Quick Overview

Incorporating Sony's latest High Definition CMOS technology, our new complete camera assemblies offer a perfect solution for applications requiring a rugged housing with flexible configurations for indoor and outdoor environments. Ideally suited for Machine Vision, Remote Viewing, Low Vision, Broadcasting, Medical, Law Enforcement, EOD Tactical Robotic, POV, UAV and many more.
Overview

Features:

  • 1/2.8-type Exmor CMOS sensor
  • 20X Optical Zoom (f=4.7mm (wide) to 94.0mm (tele))
  • HDSDI or NTSC Output (Optional HDMI, HD Component and GigE also available)
  • 1.7 Lux
  • Day/Night Mode
  • Auto White D mode
  • E-Flip
  • Mirror Image
  • 1/4-20 Standard Mounting Bracket
  • Specifications
      HD SD
    Image Sensor
    1/3-type CMOS
    Number of total pixels
    2M pixels
    Lens
    20x optical zoom, F1.6 to F3.5, f=4.7 mm (wide) to 94.0 mm (tele)
    Digital Zoom
    12x (240x with optical zoom)
    Minimum object distance
    10 mm (wide end) to 1,000 mm (tele end)
    S/N ratio
    More than 50 dB
    Electronic shutter
    1/2 to 1/10,000 s
    White balance
    Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium Vapor Lamp (Fix/Auto)
    Gain control
    Auto/Manual (-3 dB to +28 dB, +2 dB step/total 16 steps
    Focusing system
    Full Auto (Normal AF/Interval AF/Zoom AF) One-push
    Trigger, Manual. Infinity
    Signal system
    1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50
    NTSC
    720p/59.94, 720p/50, 720p/29.97, 720p/25
    PAL
    One mode out of 12 modes can be selected
    Video Output

    HD-SDI
    Options: (Y/Pb/Pr, HDMI, GigE)

    VBS:1.0 Vp-p
    (Sync Negative)
    Sync System
    Internal
    Camera control interface
    Rs232 signal level
    Storage temperature
    -40°C to +85°C
    Operating temperature
    -5°C to +60°C
    Power consumption
    12.0 V DC / 5.0W
    Mass
    Dimensions (w x h x d)
    HDSDI: 4.60" x 2.75" x 2.75" / GigE: 6.25" x 3.00" x 3.00"
    Accessories (included)
    1/4 - 20 standard mounting bracket
    Optional Accessories
    12V DC Power Supply for HDSDI (ACY415A)
    12V DC Power Supply for GigE (PD12P)
    Push Button Controller - (HDSDI only)
    BNC Cables (2m, 5m, 10m)
    RS232 Cables (2m, 5m, 10m, 15m)
    Video Cables
    HDSDI Cables
    Gigabit Ethernet Cables
